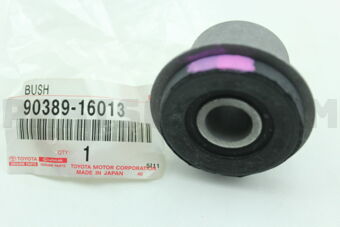

9038916013 Toyota BUSH(FOR REAR SPRING LEAF), Price: 11.72$, Weight: 0.168kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
9038916013 |
BUSH(FOR REAR SPRING LEAF) |
5 |
0.168 |
2-3 |
11.72$ |
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| FEBEST |
ARM BUSH REAR SPRING
|
0 |
0.201
|
-
|
5.11$
|
Not Available |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BU6#,7#,8#,9# | BU65RD-MDTQ | Building Condition: COMPLETELY BUILT UNIT; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Rear Tire: DOUBLE TIRE; Body: DUMP; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (11B) 3000CC DIESEL; Destination: AUSTRALIA | 08.1987 - 08.1988 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BU1##,2##,RZU100,140,XZU130,140 | XZU130A-TMMQS3 | ATM,MTM: MANUAL TRANSMISSION; Seating Capacity: 2-SEATER; Building Condition: INCOMPLETE VEHICLES (CAB & CHASSIS); Deck,cab: DUMP,REINFORCED TYPE(3.1M); Rear Tire: DOUBLE TIRE; Body: DUMP; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (J05C) 5300CC DIESEL; Loading Capacity: 3 TONS | 10.1995 - 05.1999 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BU6#,7#,8#,9# | BU73-MDPDTJ3 | Seating Capacity: 6-SEATER; Building Condition: INCOMPLETE VEHICLES (CAB & CHASSIS); Deck,cab: DOUBLE CAB PICKUP; Rear Tire: DOUBLE TIRE; Body: TRUCK(PICKUP):TR TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (14B) 3700CC DIESEL; Loading Capacity: 2 TONS | 09.1991 - 05.1995 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BU60 | BU60VH-QNFTF | NO. Of Doors: 4-DOOR; Building Condition: COMPLETELY BUILT UNIT; Grade: SUPER TYPE,GL TYPE; Gear Shift Type: MTM, 5-SPEED COLUMN SHIFT; Engine: (B) 3000CC DIESEL | 01.1986 - 05.1995 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BU10#,11#,14#,21#,22#,YU210,RZU100 | RZU100R-TYMMK3 | Building Condition: INCOMPLETE VEHICLES (CAB & CHASSIS); Deck,cab: SPECIAL DUMP TRUCK; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Rear Tire: DOUBLE TIRE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Engine: (3RZFE) 2700CC EFI; Loading Capacity: 2 TONS; Destination: GENERAL COUNTRIES(EXCEPT ARL,SA,TAIW) | 03.1997 - 09.2000 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BU68,LH81,82,LY151,152,RZU68 | RZU68VH-QLQNC | ATM,MTM: MANUAL TRANSMISSION; Grade: DELIVERY TYPE; Engine: (3RZFP) 2700CC LPG | 10.1996 - 08.1999 | View |
Rear Leaf Spring Bushing for Toyota Trucks ?
This suspension bushing is a small but critical part that sits at the mounting point of the rear leaf spring. Its job is to cushion the connection between the spring eye and the hanger/shackle, so the rear axle can move smoothly over bumps without sending harsh vibration into the frame.
Why this part is needed
Leaf springs carry heavy loads and flex thousands of times. The bushing acts like a wear pad, preventing metal-to-metal contact and keeping the spring aligned. It also helps maintain stable ride height and straight tracking under load.
How it works
The bushing presses into the spring eye and supports the bolt/pin. As the suspension cycles, it allows controlled rotation while absorbing shock and noise. This reduces chatter, improves comfort, and protects the hanger and spring from oval wear.
If it’s worn or broken
Expect clunking sounds, rear-end wander, uneven tire wear, and a “loose” feeling when braking or accelerating. In severe cases the spring eye can shift, damaging the bolt, hanger, and even the leaf pack—turning a simple repair into a costly suspension rebuild ⚠️.
Compatible Models
- Dyna 200
- Dyna 200/Toyoace G25
- Dyna/Toyoace
- Dyna/Toyoace Quick
- Dyna200
- Quick Delivery
