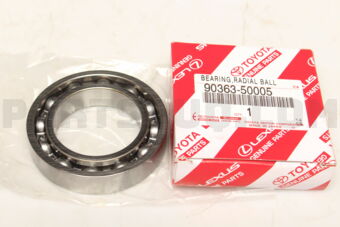

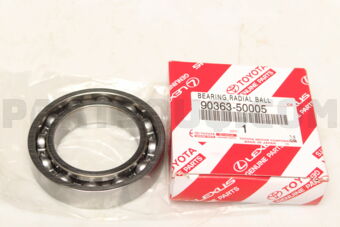

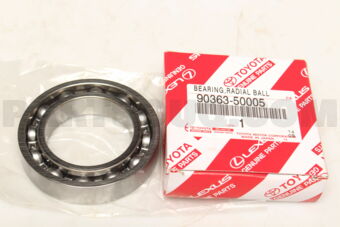

9036350005 Toyota BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR), Price: 31.92$, Weight: 0.27kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
9036350005 |
BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) |
19 |
0.27 |
2-3 |
31.92$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR)
|
17 |
0.311
|
|
38.30$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ80,HDJ80,HZJ80,FZJ80 | HZJ80R-GCMNS | ATM,MTM: MANUAL TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: GENERAL COUNTRIES | 01.1990 - 01.1999 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| UZJ100 | UZJ100L-GNAEKA | ATM,MTM: AUTOMATIC TRANSMISSION; Gear Shift Type: ATM, 5-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI | 08.2002 - 08.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ80,FZJ80,HDJ81,HZJ81 | HZJ81V-RNPNS | ATM,MTM: AUTOMATIC TRANSMISSION,4-SPEED FLOOR SHIFT; Grade: GX,GX LIMITED TYPE; Fuel Induction: DIESEL; Engine: (1HZ) 4200CC DIESEL | 01.1990 - 05.1993 | View |
Essential Transfer Output Shaft Rear Bearing
Every vehicle depends on a myriad of components to deliver performance, safety, and reliability. One such critical part is the radial ball bearing for the transfer output shaft rear. This component plays a vital role in the smooth operation of four-wheel or all-wheel drive vehicles.
Why Is This Part Needed
The bearing is crucial for allowing rotational movement with minimal friction. It ensures the transfer case's output shaft operates efficiently, distributing power effectively to the axles. A working bearing facilitates the smooth transfer of torque from the transmission to the wheels, which is the heart of the vehicle's powertrain.
How Does It Work
This radial ball bearing encompasses a set of balls encased between two rings, known as the raceways. The inner raceway is attached to the rotating shaft, while the outer one is fixed to the housing. This design allows for seamless rotation and supports radial loads.
Signs of a Faulty Bearing
- Whining or grinding noises from the transfer case
- Difficulty in shifting gears
- Uneven tire wear
- Vibrations or wobbling at certain speeds
If this part is broken or malfunctioning, you may experience poor vehicle handling, decreased fuel efficiency, or even catastrophic transmission failure. Therefore, it's imperative to replace a defective bearing promptly to avoid further damage.
Compatibility List
Compatible Car Models:
- Land Cruiser
- Land Cruiser 100
- Land Cruiser Van
