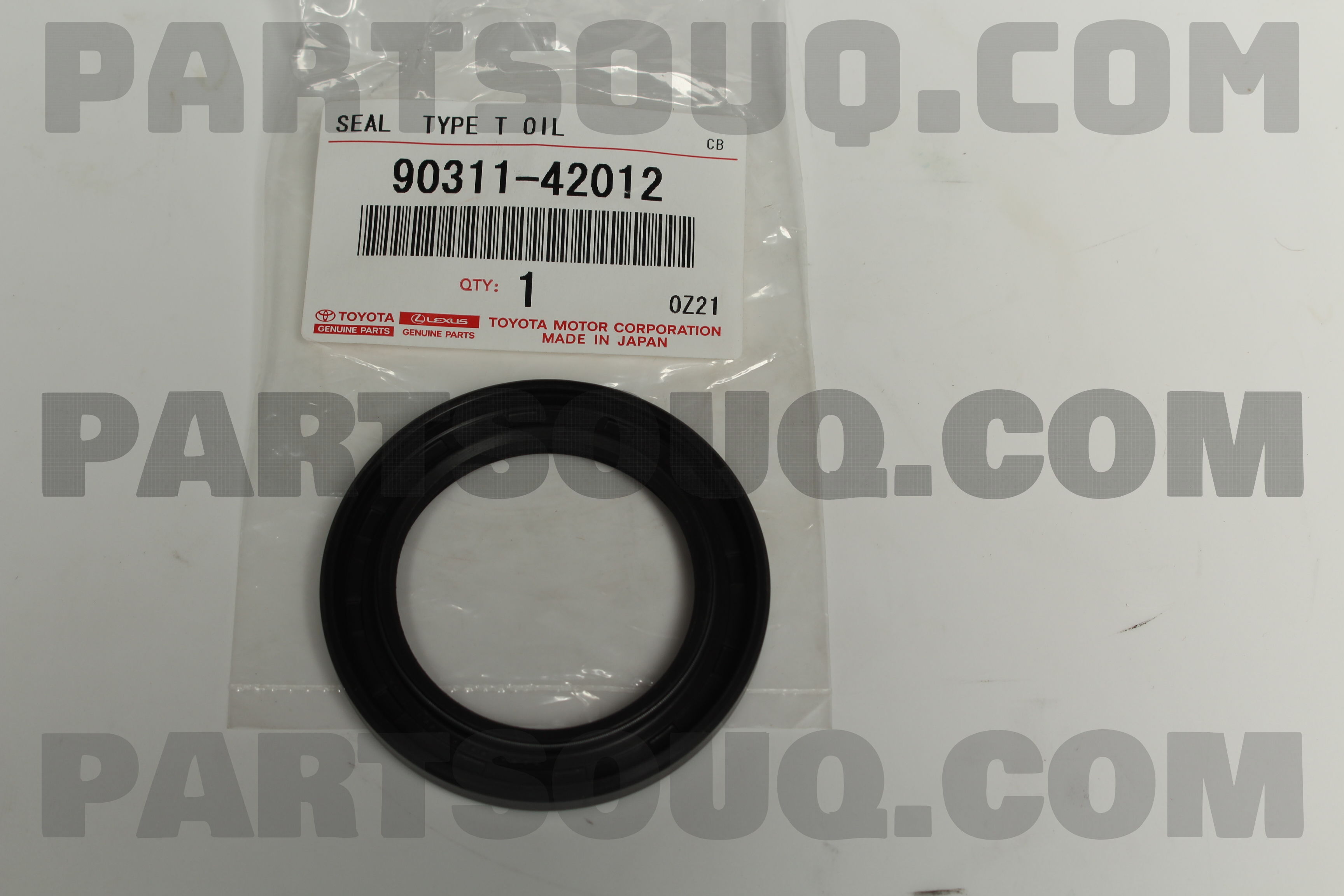

  • 9031142012 Toyota SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
Make Toyota

9031142012 SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

Images

5 Images

Originals

Make Number Name Availability Processing, days Price
Toyota
9031142012
SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
30
 Dispatch 24h
8.58$


Substitutions

Make Number Name Availability Processing, days Price
Musashi
T1178
OIL SEAL
809
4-5
1.61$


Compatibility

Toyota 9031142012

DescriptionModelOptionsProd PeriodDiagram
RN5#,6#,7#,VZN6#,LN5#,6#LN65L-MDXAATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Cab: REGULAR CAB; Transmission Model: W TYPE TRANSMISSION; Rear Tire: ST TYPE:SINGLE TIRE; Body: LOW DECK,PICKUP(STANDARD DECK 1-SIDE OPEN); Grade: DLX TYPE; Fuel Induction: TURBO DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2LT) 2400CC DIESEL TURBO; Loading Capacity: 0.5TONS; Destination: UNITED STATES OF AMERICA08.1984 - 08.1985 View
DescriptionModelOptionsProd PeriodDiagram
LD2#LD21G-MNXSeating Capacity: 5-SEATER; Body: WAGON; Grade: LX5 TYPE; Fuel Induction: TURBO DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2LT) 2400CC DIESEL TURBO09.1985 - 02.1990 View
DescriptionModelOptionsProd PeriodDiagram
GX6#,LX6#,MX61,RX6#,SX60,TX60LX65-DEPFTATM,MTM: AUTOMATIC TRANSMISSION; Body: SEDAN; Grade: SXL TYPE; Fuel Induction: TURBO DIESEL WITH ECD; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (2LTE) 2400CC DIESEL TURBO08.1982 - 07.1984 View
DescriptionModelOptionsProd PeriodDiagram
GX81,LX80,MX8#,RX8#LX80L-AEMESATM,MTM: MANUAL TRANSMISSION; Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: SEDAN; Grade: GL TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL; Destination: GENERAL COUNTRIES08.1988 - 02.1993 View
DescriptionModelOptionsProd PeriodDiagram
GX81,LX80,MX83,SX80,YX80,JZX81LX80-CEMESATM,MTM: MANUAL TRANSMISSION; Body: SEDAN; Grade: SUPER CUSTOM TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL08.1988 - 10.1992 View
DescriptionModelOptionsProd PeriodDiagram
GS13#,LS13#,MS13#,YS130,UZS131,JZS13#LS130G-AWPJJATM,MTM: AUTOMATIC TRANSMISSION; Body Shape: NORMAL BODY; Body: WAGON; Grade: SUPER SALOON EXTRA TYPE; Fuel Induction: TURBO DIESEL WITH ECD; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (2LTHE) 2400CC DIESEL TURBO09.1987 - 10.1991 View
DescriptionModelOptionsProd PeriodDiagram
YH81,LH80LH80L-MDBW3ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: HIGH DECK (FLAT DECK); Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL; Destination: EUROPE08.1987 - 05.1995 View
DescriptionModelOptionsProd PeriodDiagram
YY5#,6#,LY6#LY61R-MDLTBuilding Condition: COMPLETELY BUILT UNIT; Deck,cab: JUST LOW; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Rear Tire: DOUBLE TIRE; Engine: (3L) 2800CC DIESEL; Destination: GENERAL COUNTRIES08.1988 - 05.1995 View
DescriptionModelOptionsProd PeriodDiagram
RH11,LH11LH11R-QRW3Seating Capacity: 3-SEATER; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: LOW DECK,PICKUP(STANDARD DECK 1-SIDE OPEN); Gear Shift Type: MTM, 5-SPEED COLUMN SHIFT; Engine: (L) 2200CC DIESEL; Destination: EUROPE11.1982 - 07.1985 View
DescriptionModelOptionsProd PeriodDiagram
LH24LH24HV-QDLT3ATM,MTM: MANUAL TRANSMISSION; Engine: (L) 2200CC DIESEL04.1984 - 07.1985 View
DescriptionModelOptionsProd PeriodDiagram
YH81,LH8#,LH9#LH85-MDL3ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Deck,cab: JUST LOW; Rear Tire: SINGLE TIRE; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL10.1987 - 05.1995 View
DescriptionModelOptionsProd PeriodDiagram
LH10#,11#,RZH10#,11#LH118L-SBMRSWSeating Capacity: 3-SEATER; NO. Of Doors: 5-DOOR; Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: VAN; Body: V(MODEL MARK); Grade: STANDARD TYPE; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL; Destination: EUROPE08.1989 - 08.1995 View
DescriptionModelOptionsProd PeriodDiagram
YH5#,6#,71,LH5#,6#,7#LH66V-MNFEATM,MTM: MANUAL TRANSMISSION; Seating Capacity: 5-SEATER; NO. Of Doors: 5-DOOR VAN; Roof: STANDARD ROOF; Rear Tire: ST TYPE:SINGLE TIRE; Body: VAN; Body: V(MODEL MARK); Grade: GL TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL08.1987 - 08.1989 View
DescriptionModelOptionsProd PeriodDiagram
KZH1##,LH1##,RZH1##,TRH1##LH140G-GEMBSDrive Train: 2 WHEEL DRIVE; Seating Capacity: 6-SEATER; NO. Of Doors: 4-DOOR; Roof: STANDARD ROOF; Body: WAGON; Grade: SW TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL10.1990 - 08.1993 View
DescriptionModelOptionsProd PeriodDiagram
YN85,LN85LN85L-TRMRSWAATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Cab: REGULAR CAB; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: STANDARD TYPE; Fuel Induction: DIESEL; Deck: LOW DECK,PICKUP(STANDARD DECK 1-SIDE OPEN); Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL01.1989 - 02.1997 View
DescriptionModelOptionsProd PeriodDiagram
LN200,RN8#,90,125,RZN200,YN8#,9#,LN8#,90LN90L-CRMDS3ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES; Deck,cab: EXTRA CAB; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: DELUXE TYPE,SUPER DELUXE TYPE,GL TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL; Destination: GENERAL COUNTRIES08.1988 - 08.1991 View
DescriptionModelOptionsProd PeriodDiagram
LN,RN,YN,VZN10#,11#,13#,KZN,LN205LN135R-GKMDSATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: WAGON(4-RUNNER); Grade: DELUXE TYPE,SUPER DELUXE TYPE,GL TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (3L) 2800CC DIESEL; Destination: GENERAL COUNTRIES04.1989 - 11.1995 View
DescriptionModelOptionsProd PeriodDiagram
BJ73,LJ7#,RJ7#,HZJ7#,PZJ7#,KZJ7#LJ73LV-MNXWDriver's Position: LEFT-HAND DRIVE VEHICLES; Body: HARDTOP(HARDTOP OR FRP TOP); Grade: LX TYPE; Fuel Induction: DIESEL; Engine: (2LT) 2400CC DIESEL TURBO01.1990 - 08.1994 View
DescriptionModelOptionsProd PeriodDiagram
FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7#LJ78G-PGTATM,MTM: AUTOMATIC TRANSMISSION,4-SPEED FLOOR SHIFT; Body Shape: VEHICLE WITH A NUMBER STARTING FROM 5(MINICAR); Body: WAGON; Grade: PRADO EX5 TYPE('91.8- PRADO EX TYPE); Engine: (2LTE) 2400CC DIESEL TURBO04.1990 - 08.1992 View
DescriptionModelOptionsProd PeriodDiagram
GX81,LX80,MX83,SX80,YX80,JZX81LX80-AEMNXATM,MTM: MANUAL TRANSMISSION; Body: SEDAN; Grade: GL TYPE; Fuel Induction: TURBO DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2LT) 2400CC DIESEL TURBO08.1988 - 02.1993 View
DescriptionModelOptionsProd PeriodDiagram
GX70,LX76,YX7#LX76V-XXMDSATM,MTM: MANUAL TRANSMISSION; Body: VAN; Body: V(MODEL MARK); Grade: DX TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2L) 2400CC DIESEL12.1988 - 09.1994 View
DescriptionModelOptionsProd PeriodDiagram
RY20,3#,LY20,3#,JY30LY31R-QDBBuilding Condition: COMPLETELY BUILT UNIT; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Rear Tire: SINGLE TIRE; Body: HIGH DECK (FLAT DECK); Gear Shift Type: MTM, 5-SPEED COLUMN SHIFT; Engine: (2L) 2400CC DIESEL; Loading Capacity: 1.5 TONNE; Destination: GENERAL COUNTRIES08.1983 - 07.1985 View
DescriptionModelOptionsProd PeriodDiagram
LY5#,LY6#,YY5#,YY61LY61-MDPJATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Deck,cab: DOUBLE CAB; Cab: DOUBLE CAB PICKUP; Rear Tire: SINGLE TIRE; Fuel Induction: DIESEL; Engine: (3L) 2800CC DIESEL; Loading Capacity: 1.25TONS08.1988 - 05.1995 View

Information

Timing Case Oil Seal – Leak-Proof Protection ️

This engine oil seal sits at the timing gear/chain case area, where rotating parts meet a fixed cover. Its job is simple but critical: keep engine oil inside the timing case while the shaft spins at high speed. A good seal maintains correct oil level, prevents mess, and protects belts, mounts, and rubber parts from oil damage.

Why this seal is needed ✅

The timing section relies on steady lubrication for the chain/gears and related guides. This seal forms a tight lip around the rotating surface, stopping oil from escaping even under heat, pressure, and vibration. Without a healthy seal, the engine can slowly bleed oil and lose proper lubrication margin.

How it works

Inside the seal is a spring-loaded sealing lip that hugs the shaft. The lip rides on a thin oil film, reducing friction while still blocking leaks. The outer shell presses firmly into the case bore to prevent seepage around the edges.

If the seal is worn or broken ⚠️

Expect oil leaks at the front/side of the engine, oil smell, dirty buildup, and possible belt slip if oil reaches drive belts. Long-term driving can lead to low oil level, noisy timing components, and increased engine wear.

Compatibility

  • 4-Runner Truck
  • Blizzard
  • Chaser
  • Cressida
  • Cresta
  • Crown
  • Dyna100
  • Dyna150
  • Hiace
  • Hiace Quick Delivery
  • Hiace Truck
  • Hiace Van
  • Commuter
  • Hiace Van,Wagon
  • Hiace/Regiusace
  • Hilux
  • Hilux 2Wd
  • Hilux/4Runner (4Wd)
  • Land Cruiser
  • Land Cruiser S/T,H/T
  • Mark 2
  • Mark 2 V,Wg
  • Toyoace
  • Toyoace/Dyna
