  • 9004311316 Toyota SEAL, OIL (FOR TRANSAXLE CASE)
Make Toyota

9004311316 SEAL, OIL (FOR TRANSAXLE CASE)

Images

4 Images

Originals

Make Number Name Availability Processing, days Price
Toyota
9004311316
SEAL, OIL (FOR TRANSAXLE CASE)
8
 Dispatch 24h
14.96$


Substitutions

Make Number Name Availability Processing, days Price

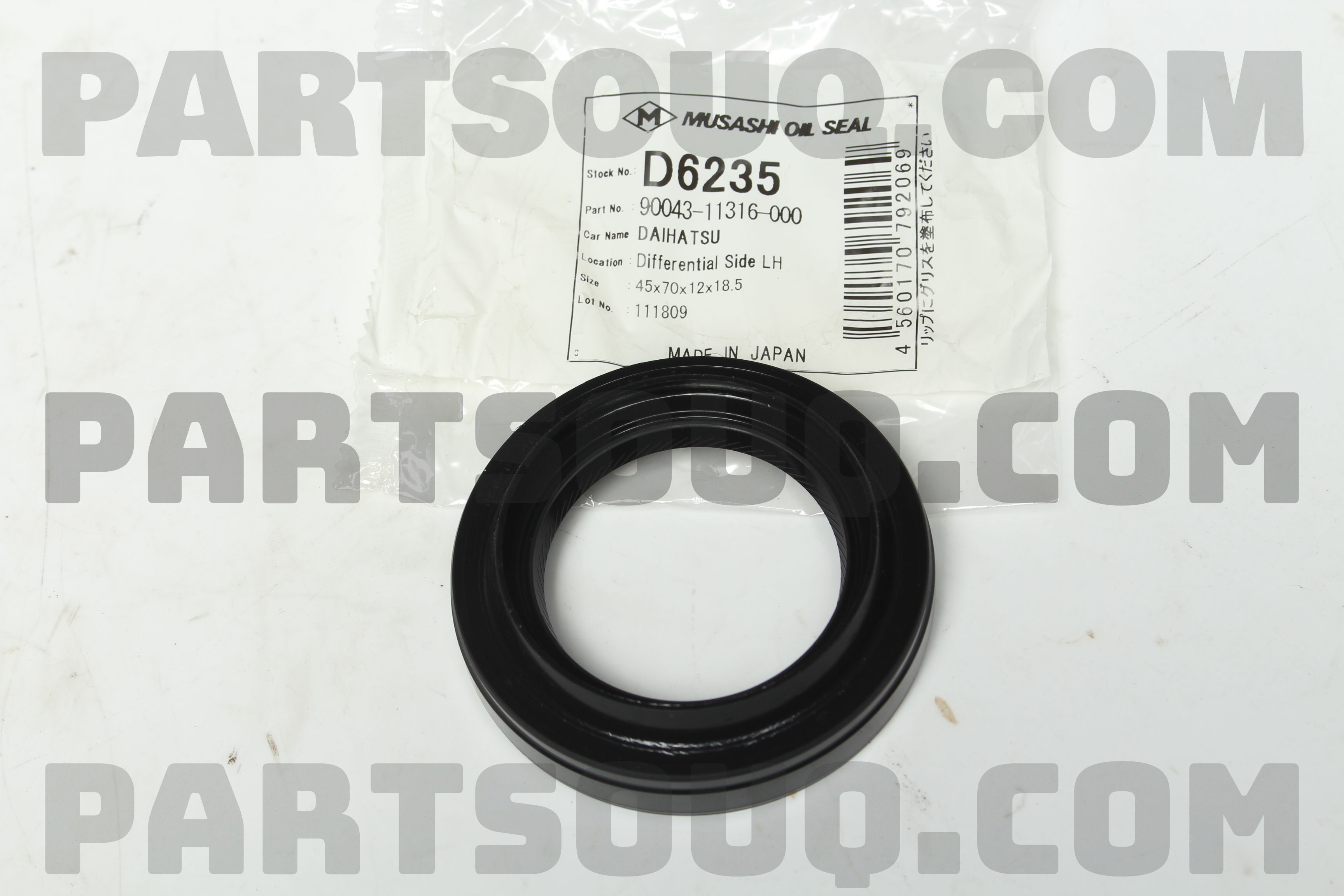

Musashi
D6235
OIL SEAL DEF SIDE LEF
0
4-5
4.19$


Compatibility

Toyota 9004311316

DescriptionModelOptionsProd PeriodDiagram
B10#B101RA-GQSGJATM,MTM: AUTOMATIC TRANSMISSION; NO. Of Doors: 5-DOOR; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: SPORTS HI TYPE; Engine: (3NRVE) 1200CC04.2017 - 03.2023 View
DescriptionModelOptionsProd PeriodDiagram
QNC2#QNC25-BHSXKATM,MTM: AUTOMATIC TRANSMISSION; Grade: S TYPE; Gear Shift Type: ATM, 4-SPEED COLUMN SHIFT; Engine: (K3VE) 1300CC 16-VALVE DOHC EFI01.2006 - 09.2014 View
DescriptionModelOptionsProd PeriodDiagram
B401B401RA-GQZFJATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: G TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (3NRVE) 1200CC06.2016 - ... View
DescriptionModelOptionsProd PeriodDiagram
M100A,M101A,M110A,M111AM111A-GQSAATM,MTM: AUTOMATIC TRANSMISSION; Grade: VS TYPE; Fuel Induction: WITH VVT; Gear Shift Type: ATM,4-SPEED(STEERSHIFTMATIC); Engine: (K3VE) 1300CC 16-VALVE DOHC EFI12.2001 - 05.2004 View
DescriptionModelOptionsProd PeriodDiagram
KGC1#,QNC10QNC10-AHSEKATM,MTM: AUTOMATIC TRANSMISSION; Grade: RACY TYPE; Gear Shift Type: ATM, 4-SPEED COLUMN SHIFT; Engine: (K3VE) 1300CC 16-VALVE DOHC EFI12.2004 - 02.2010 View
DescriptionModelOptionsProd PeriodDiagram
M502E,M512EM512E-HQZEGrade: S TYPE; Engine: (3SZVE) 1500CC 16-VALVE DOHC EFI12.2008 - 03.2012 View

Information

Transaxle Case Oil Seal ✅

This precision oil seal is made to keep transmission oil safely inside the transaxle case, while blocking dust and water from entering. It is a small part with a big job: protecting gears, bearings, and internal shafts from oil loss and contamination ⚙️.

Why This Seal Is Needed

The transaxle works under constant rotation and heat. Oil must stay at the correct level to lubricate and cool moving parts. This seal forms a tight barrier around the rotating shaft area, helping the case stay leak-free even during long drives and stop‑and‑go traffic .

How It Works

A flexible sealing lip rides against the shaft surface with light pressure. As the shaft spins, the lip maintains contact, creating a controlled film of oil that reduces friction while stopping leaks. The outer shell holds firm in the case bore to prevent seepage.

What Happens If It’s Worn or Broken

Common results are oil spots under the car, a burnt-oil smell, low transmission oil level, noisy operation, harsh shifting, and possible internal damage. Ignoring a leaking seal can lead to overheating and costly transaxle repairs ❗.

Compatible Models

  • Agya/Wigo
  • Bb
  • Calya
  • Duet
  • Passo
  • Passo Sette
