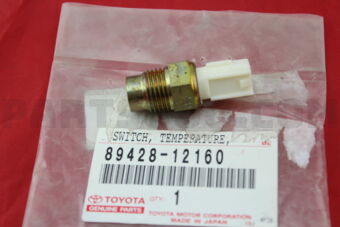

  • 8942812160 Toyota SWITCH, TEMPERATURE DETECT

8942812160 Toyota SWITCH, TEMPERATURE DETECT, Price: 68.59$, Weight: 0.027kg

    • Make Number Name Availability Weight, kg Ship in, Days Price

    Toyota

    8942812160

    SWITCH, TEMPERATURE DETECT

    		 2

    0.027

    2-3

    68.59$


    Originals

    Make Number Name Availability Weight, kg Processing, days Price
    Toyota
    8942812160
    SWITCH, TEMPERATURE DETECT
    		2
    0.031
     Dispatch 24h
    82.31$


    Substitutions

    Make Number Name Availability Weight, kg Processing, days Price
    Toyota
    8934858110
    RETAINER ULTRASONIC
    		515
    0.012
     Dispatch 24h
    5.28$

    Toyota
    8934858110
    RETAINER ULTRASONIC
    		562
    0.012
    2-3
    4.40$

    Tama
    BS603
    THERMO SWITCH
    		0
    0.031
    4-5
    17.73$
    		 Not Available
    Taiho
    8942812150
    THERMO SWITCH
    		0
    0.048
    4-5
    13.54$
    		 Not Available

    Evaporator Temperature Switch – Stable A/C Cooling ❄️

    OEM-grade replacement sensor that monitors evaporator fin temperature so your cabin stays cold without icing. Engineered with the correct connector and resistance curve for Toyota climate systems, it restores precise cooling control and long compressor life.

    Why you need it

    This sensor prevents ice build-up on the evaporator, protects the compressor from overwork, keeps airflow strong, and maintains steady comfort. In hybrids and EVs it also helps the system save energy by avoiding unnecessary cooling cycles.

    How it works

    An NTC thermistor reads the evaporator core temperature inside the HVAC unit. The A/C amplifier or ECU interprets the signal and cycles/modulates the compressor when the fins approach freezing (around 1–3°C). Once the core warms, cooling resumes. This loop stops frost, stabilizes vent temperature, and cuts load on the drivetrain.

    If it fails ⚠️

    Expect warm air, random cold/hot bursts, weak airflow after a few minutes (icing), a compressor that never engages or never stops, wet or foggy vents, and stored climate fault codes. Driving with a bad sensor can stress the compressor and flood the case with condensate.

    Install tips

    Usually mounted on or inside the evaporator housing/line. Disconnect battery, remove glovebox/trim, swap the sensor, ensure the seal seats fully, clear codes, and run HVAC self-learn. Quick, clean, no sealant needed.

    Compatibility

    • Alphard/Vellfire/Hv
    • Auris/Corolla Hb
    • C+Pod
    • C-Hr
    • Corolla
    • Corolla Sport
    • Highlander
    • Highlander/Kluger
    • Noah/Voxy/Esquire
    • Prius
    • Rav4
