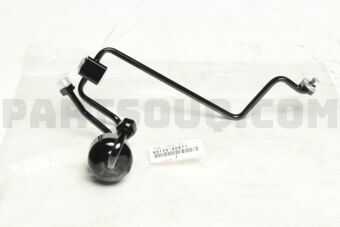

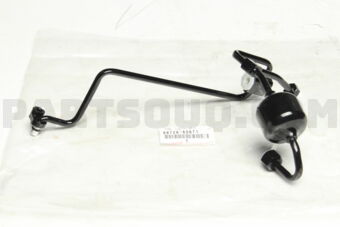

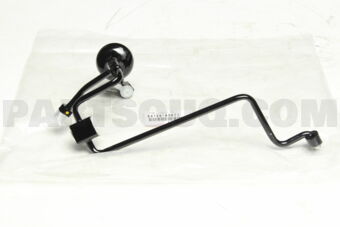

8872660671 Toyota PIPE, COOLER REFRIGERANT LIQUID, A, Price: 107.50$, Weight: 0.609kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
8872660671 |
PIPE, COOLER REFRIGERANT LIQUID, A |
11 |
0.609 |
2-3 |
107.50$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
PIPE, COOLER REFRIGERANT LIQUID, A
|
5 |
0.7
|
|
128.70$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ101,UZJ100 | UZJ100W-GNAZK | ATM,MTM: AUTOMATIC TRANSMISSION; Grade: CYGNUS TYPE; Gear Shift Type: ATM, 5-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI | 08.2002 - 08.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ10#,HDJ100,HZJ105,UZJ100 | UZJ100R-GNMNKQ | ATM,MTM: MANUAL TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI; Destination: AUSTRALIA | 08.2002 - 05.2006 | View |
Premium A/C Refrigerant Pipe for Toyota SUVs ❄️
Why you need this part
This high-precision air conditioning line carries liquid refrigerant from the condenser toward the expansion point, ensuring cold, dry flow to the evaporator. Without a healthy pipe, your cabin won’t cool properly, pressures go off-spec, and the compressor works harder—shortening its life.
How it works
The tube’s calibrated diameter and bends keep refrigerant velocity and pressure stable. Its corrosion-resistant alloy and flare ends seal with O-rings to prevent moisture ingress. By keeping the loop tight and leak-free, it allows the expansion valve to meter refrigerant precisely, delivering steady, icy air .
What happens if it’s damaged
Cracks or pinholes cause gas and oil loss, warm air at the vents, hissing sounds, and oily residue at joints. Low charge can starve the compressor, leading to overheating, clutch cycling, and costly failure. Moisture entry risks acid formation, internal corrosion, and blocked orifice—bad news all around ⚠️.
Tech tips for installation
Always replace O-rings, lightly oil with correct PAG, vacuum the system to deep hold, then recharge to spec. Inspect brackets and isolators to avoid vibration rub-through. Do not overtighten—use correct torque to protect fittings.
Compatibility
- Land Cruiser
- Land Cruiser 100
