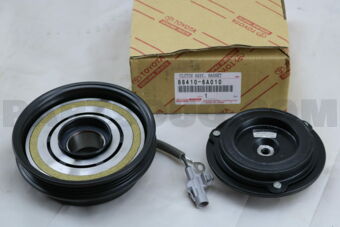

884106A010 Toyota CLUTCH ASSY, MAGNET, Price: 401.64$, Weight: 2.271kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
884106A010 |
CLUTCH ASSY, MAGNET |
23 |
2.271 |
2-3 |
401.64$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
CLUTCH ASSY, MAGNET
|
6 |
2.612
|
|
481.97$
|
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
8836012100
|
SEAL ASSY, COOLER COMPRESSOR SHAFT
|
2 |
0.016
|
2-3
|
57.19$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# | HDJ79R-TJMRZQ3 | ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: PICKUP; Grade: STANDARD TYPE; Fuel Induction: TURBO DIESEL EFI; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HDFTE) 4200CC DIESEL TURBO; Destination: AUSTRALIA | 08.2001 - 01.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ100,UZJ100 | HDJ100R-GNPEZW | ATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: VX TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1HDFTE) 4200CC DIESEL TURBO | 01.1998 - 07.2003 | View |
Magnetic A/C Compressor Clutch Assembly for Toyota SUVs ❄️
Restore confident cooling with an OE-spec magnetic clutch for the air-conditioning compressor. Designed for rugged SUV duty, it delivers clean engagement, stable belt load, and long service life, keeping the HVAC system efficient even in hot climates.
Why this part is needed
The clutch lets the compressor spin only when cooling is requested. That saves fuel, reduces wear, and prevents constant drag on the serpentine belt. A fresh unit cures slipping, chatter, and intermittent cold air—common on high-mileage 4x4s.
How it works
A pulley freewheels on a sealed bearing. When the coil receives 12V, it creates a magnetic field that pulls the drive plate against the pulley face, locking them together and turning the compressor. A precise air gap ensures quick, quiet on/off cycles.
What happens if it’s broken
Signs include no cold air, burnt smell, squeal, metal dust on the snout, or a belt smoking from a seized bearing. Continued use can overheat the coil, blow the A/C fuse, snap the belt, and even damage the compressor and tensioner.
Tech notes for installation ⚙️
- Set clutch air gap to spec; align shims carefully.
- Torque center bolt correctly; verify pulley runout.
- Check coil resistance and power feed; confirm good ground.
- Spin bearing by hand—no roughness or play should be felt.
- After install, test cycling with A/C on MAX and observe engagement click.
Compatibility
- Land Cruiser
- Land Cruiser 100
