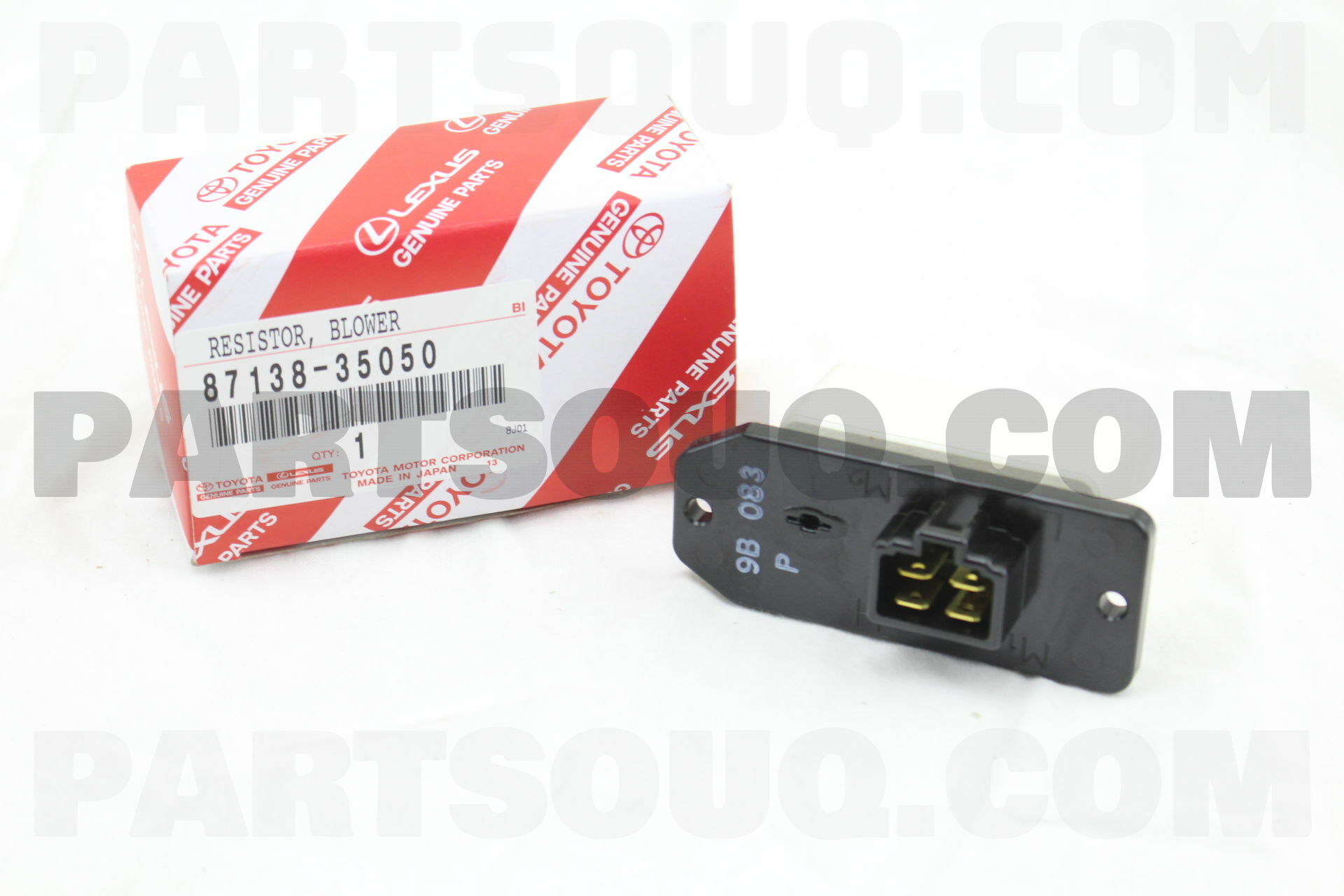

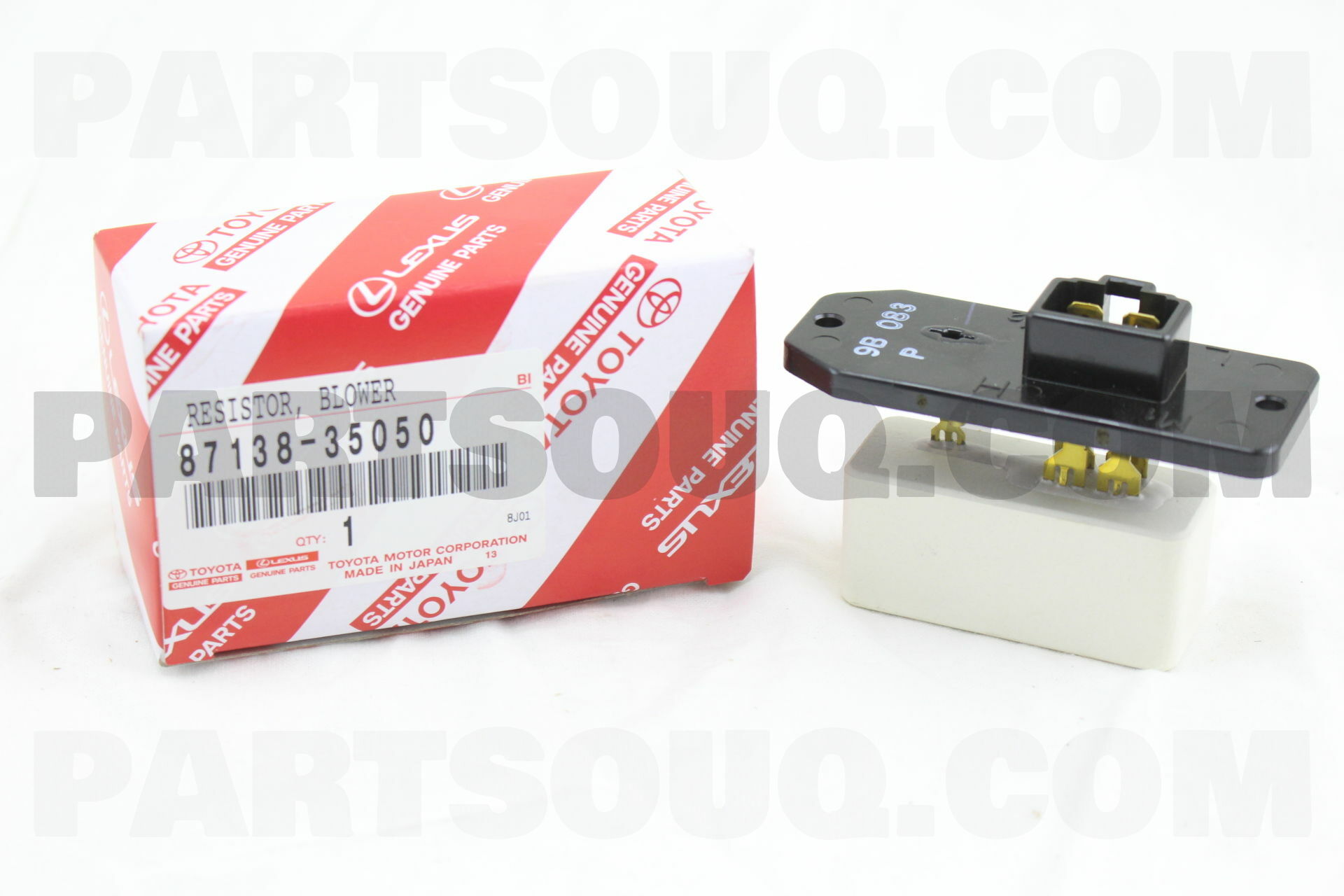

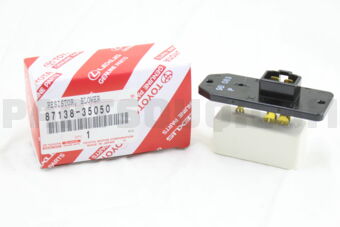

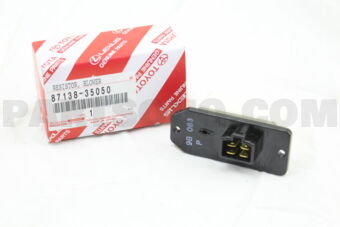

8713835050 Toyota RESISTOR, BLOWER, Price: 18.90$, Weight: 0.137kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
8713835050 |
RESISTOR, BLOWER |
10 |
0.137 |
2-3 |
18.90$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
RESISTOR, BLOWER
|
10 |
0.158
|
|
22.68$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| RZN18#,VZN18# | VZN185L-GKPZKA | ATM,MTM: AUTOMATIC TRANSMISSION; Grade: LUXURY TYPE(-0008),LIMITED TYPE(0008-); Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (5VZFE) 3400CC EFI | 11.1995 - 08.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KDN185,KZN185,RZN18#,VZN18# | RZN185W-GKPXK | ATM,MTM: AUTOMATIC TRANSMISSION; Body: NORMAL BODY; Grade: SSR-X TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (3RZFE) 2700CC EFI | 11.1995 - 11.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KZJ9#,LJ9#,RZJ9#,VZJ9# | VZJ95R-GKPNKQ | ATM,MTM: AUTOMATIC TRANSMISSION; NO. Of Doors: 5-DOOR; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Engine: (5VZFE) 3400CC EFI; Destination: AUSTRALIA | 04.1996 - 09.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KDJ9#,KZJ9#,RZJ9#,VZJ9# | VZJ95W-GKPGK | ATM,MTM: AUTOMATIC TRANSMISSION; Seating Capacity: 8-SEATER; NO. Of Doors: 5-DOOR; Grade: TZ TYPE; Engine: (5VZFE) 3400CC EFI | 04.1996 - 09.2002 | View |
HVAC Blower Motor Resistor Pack for Toyota SUVs ️
Why you need it
This small module controls your cabin fan speeds. It lets the heater and A/C move air at low, medium, and high settings for comfort, fast demisting, and quiet cruising. Without it, climate control becomes noisy or weak, windows fog up, and the cabin won’t cool or heat as it should ❄️.
How it works
Inside are resistor coils and a thermal fuse. Each coil drops voltage to the blower motor to create different speeds. The unit sits in the airflow of the HVAC housing to keep cool. Your dash switch sends a signal; the resistor selects the right path, and the blower runs at the chosen speed. Simple, reliable, and easy to service .
What happens when it fails
Common signs: only highest speed works, lower speeds dead, fan cuts in and out, or a burnt smell. If ignored, the connector may overheat, the motor can draw too much current, and defogging becomes slow and unsafe ⚠️. A seized blower or clogged cabin filter can also cook the resistor—fix the root cause.
Tech tips
Direct fit under the glove box; typically a 10–15 minute swap. Inspect the blower wheel and cabin filter; clean or replace to protect the new unit. Check the plug for heat damage; repair terminals if dark or brittle. Good airflow means longer life and steady fan speeds.
Compatibility
- 4Runner
- Hilux Surf
- Land Cruiser 90
- Land Cruiser Prado
