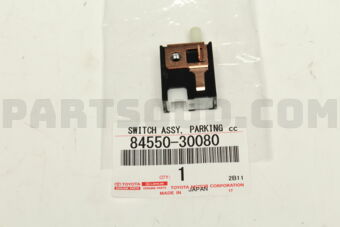

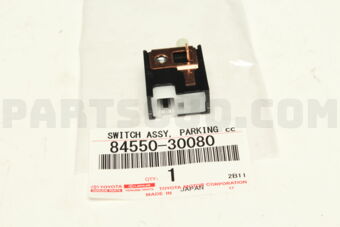

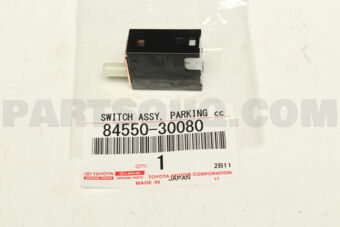

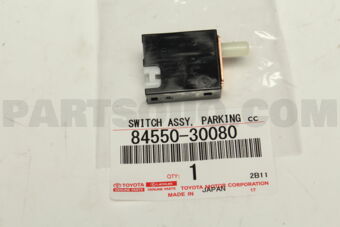

8455030080 Toyota SWITCH ASSY, PARKING BRAKE, Price: 18.51$, Weight: 0.017kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
8455030080 |
SWITCH ASSY, PARKING BRAKE |
10 |
0.017 |
2-3 |
18.51$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
SWITCH ASSY, PARKING BRAKE
|
8 |
0.02
|
|
22.21$
|
OEM Parking Brake Indicator Switch for Toyota
Restore accurate BRAKE warning on your dash with this reliable parking brake indicator switch, OE ref: 84550-30080. Mounted by the handbrake lever, it tells the cluster and body ECU when the lever is engaged. Clear feedback means safer driving and fewer surprises at night or on steep hills.
Why this part is needed
It powers the red BRAKE light and reminder buzzer, confirming the parking brake is on. Many inspections check this circuit. A healthy switch also helps the vehicle logic know the true brake status, which may support features like hill-start assist (if equipped).
How it works ⚙️
A spring-loaded plunger touches the lever bracket. Lever up = circuit closed = lamp on. Lever down = circuit open = lamp off. Gold-plated contacts resist corrosion; a simple two-wire plug delivers a stable signal.
What happens if it fails ⚠️
Common symptoms: BRAKE lamp stuck on, lamp never comes on, intermittent chime, or dash warning flicker over bumps. You may forget the brake engaged, wear pads/shoes, or fail inspection. In some cases, driver aids won’t see correct status.
Install and quality ✅
Direct-fit, plug-and-play. Access the lever base, remove the small screw/clip, swap the switch, adjust the plunger so the lamp goes off just as the lever fully releases. Typical install: 10–20 minutes with basic tools.
Compatibility
- Tacoma
