  • 8353060020 Toyota SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

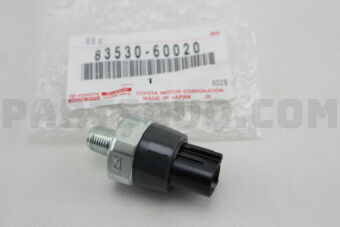

8353060020 Toyota SWITCH ASSY, OIL PRESSURE (FOR ENGINE), Price: 21.23$, Weight: 0.043kg

    • Make Number Name Availability Weight, kg Ship in, Days Price

    Toyota

    8353060020

    SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

    		 47

    0.043

    2-3

    21.23$


    Substitutions

    Make Number Name Availability Weight, kg Processing, days Price
    Toyota
    8212548010
    WIRE, TRANSMISSION
    		14
    0.5
     Dispatch 24h
    34.73$

    Toyota
    8212548010
    WIRE, TRANSMISSION
    		14
    0.5
    2-3
    28.94$

    Toyota
    8353005010
    SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
    		0
    0.039
    -
    24.07$
    		 Not Available
    Toyota
    8353030090
    SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
    		0
    0.063
    -
    22.54$
    		 Not Available
    Toyota
    8353028020
    SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
    		0
    0.043
    -
    19.31$
    		 Not Available
    Toyota
    8353014060
    SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
    		0
    0.058
    -
    19.31$
    		 Not Available
    Toyota
    83530AA011
    SWITCH ASSY, OIL PRESSURE (FOR ENGINE)
    		0
    0.071
    -
    16.71$
    		 Not Available
    HABASHI
    8353028020
    OIL PRESSURE SWITCH
    		0
    0.043
    4-5
    4.85$
    		 Not Available

    Engine Oil Pressure Switch for Toyota — OE-Grade Protection ️

    This small sensor guards your engine by watching oil pressure every second. When pressure drops, it signals the dash light so you can stop before bearings, cams, and turbo (if equipped) run dry. It’s a simple, affordable part that prevents very expensive damage.

    How It Works ⚙️

    Inside is a calibrated diaphragm and spring. With the engine off or low pressure, contacts close and the warning lamp turns on. As oil pressure rises, the diaphragm opens the circuit, switching the light off. Some ECUs also read this signal to log faults and control fail-safe modes.

    What Happens If It’s Bad ❗

    Common signs: oil light flicker, light stays on with good pressure, or no light at key-on. A failed switch can also leak oil from the body or threads. Ignoring a true warning can lead to spun bearings and seized engine. If the light behaves oddly, verify pressure with a gauge and replace the switch.

    Install Tips

    Threaded fit; replace sealing washer if used. Clean port, apply correct sealant (if specified), and torque to spec—do not overtighten. Inspect connector for oil intrusion and clear any stored codes after installation.

    Built to Last

    Heat- and oil-resistant body, stable calibration, fast switching for accurate dashboard alerts.

    Compatibility

    • Alphard
    • Alphard G/V
    • Avensis
    • Camry
    • Camry/Aurion/Hv
    • Camry/Hybrid
    • Corolla
    • Harrier
    • Highlander
    • Highlander/Kluger
    • Matrix
    • Rav4
    • Rav4/Vanguard
    • Solara
