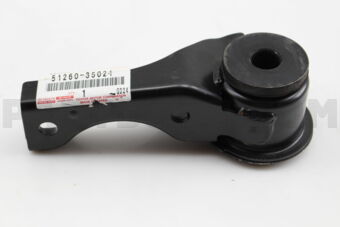

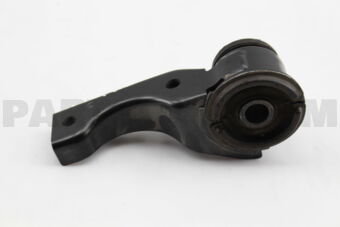

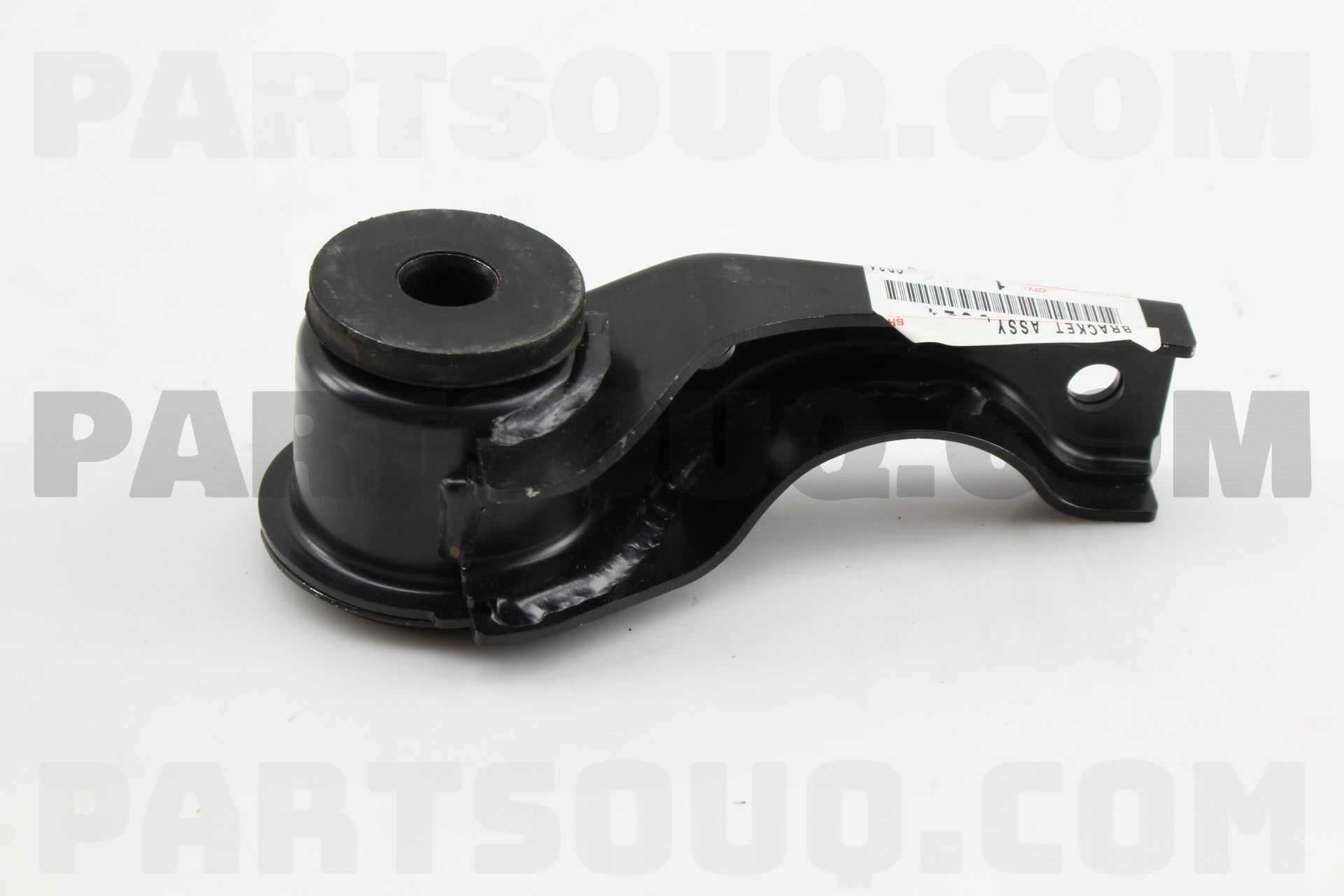

5126035021 Toyota BRACKET ASSY, DIFFERENTIAL SUPPORT, LH, Price: 72.61$, Weight: 1.236kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
5126035021 |
BRACKET ASSY, DIFFERENTIAL SUPPORT, LH |
4 |
1.236 |
2-3 |
72.61$ |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KZN165,190,KDN,LN,RZN,YN,VZN14#,15#,16#,17#,19# | VZN172R-CRPDEQ | ATM,MTM: AUTOMATIC TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Cab: EXTRA CAB; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: DLX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Engine: (5VZFE) 3400CC EFI; Destination: AUSTRALIA | 08.2002 - 02.2005 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| LN,RN,YN,VZN10#,11#,13#,KZN,LN205 | RN110R-CRMSSQ | ATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Deck,cab: EXTRA CAB; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: SR-5 TYPE,GLX TYPE; Fuel Induction: CARBURETOR SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (22R) 2400CC; Destination: AUSTRALIA | 08.1988 - 08.1997 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| RCK10,VCK1#,2# | VCK21L-TRSDKK | ATM,MTM: AUTOMATIC TRANSMISSION,4-SPEED COLUMN SHIFT; Cab: REGULAR CAB; Grade: DLX TYPE; Engine: (5VZFE) 3400CC EFI; Loading Capacity: 0.5TONS; Destination: CANADA | 08.1994 - 08.1996 | View |
Left-Hand Differential Support Bracket for 4WD Front Axle
Built for tough trails and daily duty, this LH mount holds the front differential firmly to the chassis. It keeps gear mesh true, limits torque twist, and cuts vibration for a smoother, quieter ride . Strong stamped steel and a rigid profile help the axle take heavy loads without losing alignment.
Why this part is needed
The bracket supports the diff weight and maintains pinion angle under acceleration, towing, and off-road use. It protects CV joints and seals by keeping the carrier steady and centered.
How it works
It bolts the differential housing to the crossmember. With bushings, it spreads torque loads and isolates vibration. The result: stable ring-and-pinion contact, less driveline shake, and controlled movement under 4WD traction .
What happens if it’s damaged
Expect clunks on takeoff, shudder in 4WD, harsh vibration, and gear whine from misalignment. Torn CV boots, faster bushing wear, and pinion seal leaks can follow. In severe cases, housing cracks or axle failure may occur.
Tech notes
Direct-fit on the left side. Support the diff during removal, inspect bushings, reuse clean hardware, and torque to spec. Align the carrier before final tightening and road-test after install ⚙️.
Compatibility
- Hilux
- Hilux/4Runner (4Wd)
- T100
