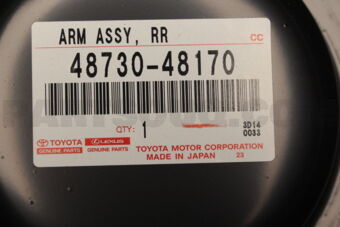

4873048170 ARM ASSY, REAR SUSPENSION, NO.2, RH/LH
Images
5 Images
Compatibility
Toyota 4873048170
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| AGL2#,GGL2#,GYL25 | GYL25L-AWXGB | ATM,MTM: CONTINUOUSLY VARIABLE TRANSMISSION; Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: WAGON; Grade: STANDARD TYPE; Engine: (2GRFXS) 3500CC 24-VALVE DOHC; Destination: GENERAL COUNTRIES | 10.2015 - 09.2022 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| AGL10,GGL15,GYL1# | GYL15L-AWXGKV | ATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: STANDARD TYPE; Gear Shift Type: CONTINUOUSLY VARIABLE TRANSMISSION; Engine: (2GRFXE) 3500CC 24-VALVE DOHC EFI; Destination: GULF CORPORATION COUNCIL | 03.2012 - 09.2015 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GGL1#,GYL1# | GYL15L-AWXGKA | ATM,MTM: AUTOMATIC TRANSMISSION; Grade: STANDARD TYPE; Gear Shift Type: CONTINUOUSLY VARIABLE TRANSMISSION; Engine: (2GRFXE) 3500CC 24-VALVE DOHC EFI | 03.2009 - 09.2015 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GGL25,GYL25 | GGL25L-BWZGBA | ATM,MTM: AUTOMATIC TRANSMISSION; Body: WAGON; Grade: STANDARD TYPE; Gear Shift Type: ATM, 8-SPEED FLOOR SHIFT; Engine: (2GRFKS) 3500CC 24-VALVE DOHC | 09.2015 - 09.2022 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GYL26 | GYL26W-ARXGB | ATM,MTM: CONTINUOUSLY VARIABLE TRANSMISSION; Seating Capacity: 7-SEATER; Body: WAGON; Engine: (2GRFXS) 3500CC 24-VALVE DOHC | 12.2017 - 09.2022 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GGL26,GYL26 | GYL26L-ARXGBV | ATM,MTM: CONTINUOUSLY VARIABLE TRANSMISSION; Seating Capacity: 7-SEATER; Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: WAGON; Grade: STANDARD TYPE; Engine: (2GRFXS) 3500CC 24-VALVE DOHC; Destination: GULF CORPORATION COUNCIL | 12.2017 - 09.2022 | View |
Information
Rear Suspension Control Arm Assembly (No.2) – Right/Left Side
This suspension arm is a key link between the rear wheel hub and the vehicle’s suspension cradle. It keeps the wheel aligned while the suspension moves up and down, helping the car stay stable in corners and smooth over bumps ?.
Why this part is needed
Rear suspension geometry depends on solid mounting points. This arm holds critical angles (toe/camber behavior) so the tires contact the road correctly, reducing uneven wear and keeping steering feel predictable.
How it works
The arm pivots through its bushings as the suspension travels. Those bushings absorb vibration and allow controlled movement, while the arm’s rigid body resists side-loads from braking, accelerating, and cornering.
What happens if it’s worn or broken
A damaged arm or torn bushings can cause rear-end wandering, clunks over bumps, unstable braking, and rapid inside/outside tire wear. In severe cases, wheel alignment can’t be held, making the vehicle unsafe at speed ⚠️.
Compatible Models
- Lexus Rx Series
- Lexus Rx270/350/450H
- Lexus Rx350/450H
- Lexus Rx450H/350
- Lexus Rx450Hl
- Lexus Rx450Hl/350L
