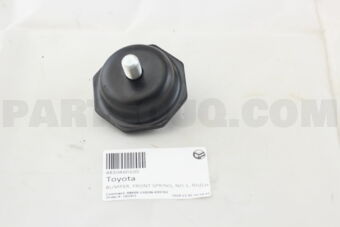

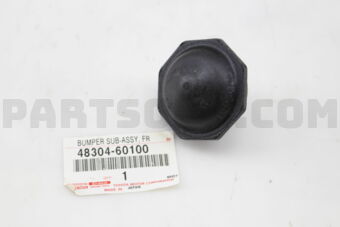

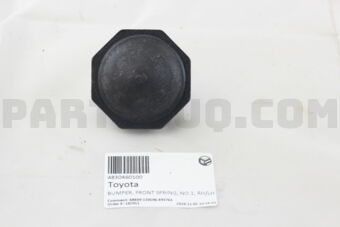

4830460100 Toyota BUMPER, FRONT SPRING, NO.1, RH/LH, Price: 16.63$, Weight: 0.163kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
4830460100 |
BUMPER, FRONT SPRING, NO.1, RH/LH |
7 |
0.163 |
2-3 |
16.63$ |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ101,UZJ100 | UZJ100W-GNAZK | ATM,MTM: AUTOMATIC TRANSMISSION; Grade: CYGNUS TYPE; Gear Shift Type: ATM, 5-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI | 08.2002 - 08.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ10#,HDJ100,HZJ105,UZJ100 | UZJ100R-GNMNKQ | ATM,MTM: MANUAL TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI; Destination: AUSTRALIA | 08.2002 - 05.2006 | View |
Front Coil Spring Bumper Stop (RH/LH) ️
This suspension stopper is a small but critical part that protects your front suspension when the wheel moves up fast over holes, speed bumps, or off-road hits. It is needed to control the last stage of suspension travel and keep metal parts from slamming together.
How It Works ⚙️
Mounted near the front spring/axle area, it acts like a cushion. When the suspension compresses to its limit, the stopper contacts its seat and absorbs impact energy. This reduces harsh shock loads on the coil spring, shock absorber, control arms, and chassis mounts.
What Happens If It’s Worn or Broken ❗
If the stopper cracks, collapses, or goes missing, the suspension can “bottom out” metal-to-metal. You may notice loud clunks, rough ride, unstable handling on dips, faster shock wear, bent brackets, and premature bushing damage—especially under load or off-road.
Why Replace It in Time ✅
A fresh stopper restores proper bump control, keeps alignment steadier during compression, and helps protect expensive suspension parts from repeated impact.
Compatibility
- Land Cruiser
- Land Cruiser 100
