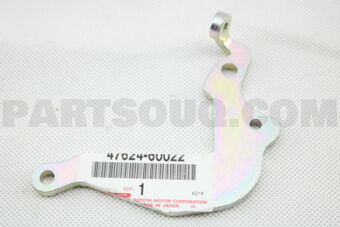

4762460022 Toyota CRANK, PARKING BRAKE BELL, RH, Price: 9.14$, Weight: 0.166kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
4762460022 |
CRANK, PARKING BRAKE BELL, RH |
120 |
0.166 |
2-3 |
9.14$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
CRANK, PARKING BRAKE BELL, RH
|
79 |
0.191
|
|
10.97$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# | HZJ79R-TJMRSQ3 | ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: PICKUP; Grade: STANDARD TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: AUSTRALIA | 08.1999 - 01.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ100,UZJ100 | UZJ100R-GNPEKW | ATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: VX TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI | 01.1998 - 08.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KZJ9#,LJ9#,RZJ9#,VZJ9# | VZJ95R-GKPNKQ | ATM,MTM: AUTOMATIC TRANSMISSION; NO. Of Doors: 5-DOOR; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Engine: (5VZFE) 3400CC EFI; Destination: AUSTRALIA | 04.1996 - 09.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| KDJ9#,KZJ9#,RZJ9#,VZJ9# | VZJ95W-GKPSK | ATM,MTM: AUTOMATIC TRANSMISSION; Seating Capacity: 8-SEATER; NO. Of Doors: 5-DOOR; Grade: TX TYPE; Engine: (5VZFE) 3400CC EFI | 01.1998 - 09.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# | KZJ78W-PGT | ATM,MTM: AUTOMATIC TRANSMISSION,4-SPEED FLOOR SHIFT; Body Shape: VEHICLE WITH A NUMBER STARTING FROM 3(ORDINARY PASSENGER CAR); Body: WAGON; Grade: PRADO EX WIDE TYPE; Engine: (1KZTE) 3000CC DIESEL TURBO | 05.1993 - 04.1996 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ80,FZJ80,HDJ81,HZJ81 | HZJ81V-RNPGS | ATM,MTM: AUTOMATIC TRANSMISSION,4-SPEED FLOOR SHIFT; Grade: VX LIMITED TYPE; Fuel Induction: DIESEL; Engine: (1HZ) 4200CC DIESEL | 05.1993 - 08.1996 | View |
RH Parking Brake Bell Crank Lever for Toyota Land Cruiser
Keep your handbrake trustworthy on hills and trails . This right‑side bell crank is the small lever fixed to the rear backing plate. It converts the straight pull of the handbrake cable into a push that spreads the brake shoes, locking the wheel securely. Built to OE geometry, it restores firm pedal/lever feel and equal holding force on both sides.
Why you need it
Road salt and mud seize the pivot, wear the bore, and bend the arm. Replacing the lever brings back smooth operation, shorter lever travel, and confident parking—even with a load or trailer.
How it works
When you pull the handbrake, the cable tugs this crank. It pivots on its pin, drives the shoe strut outward, and clamps the drum. Releasing the lever lets return springs retract the shoes. Simple, mechanical, reliable .
If it’s worn or broken
Symptoms: long lever throw, weak hold, uneven lock, dragging wheel, hot drum, squeal. Risks include overheated linings, warped drum, and roll‑away on slopes.
Fitment tips
Install on RH rear. Clean backing plate, renew pivot pin/clip, lightly grease the pivot, set shoe clearance, then adjust cable. Recheck after bedding.
Compatibility
- Land Cruiser
- Land Cruiser 100
- Land Cruiser 90
- Land Cruiser Prado
- Land Cruiser S/T,H/T
- Land Cruiser Van
