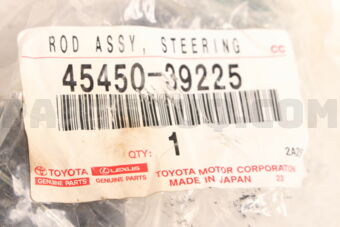

4545039225 Toyota ROD ASSY, STEERING RELAY, Price: 163.23$, Weight: 4.98kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
4545039225 |
ROD ASSY, STEERING RELAY |
250 |
4.98 |
2-3 |
163.23$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
ROD ASSY, STEERING RELAY
|
207 |
5.727
|
|
195.88$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 | XZB70L-ZXMSYV | ATM,MTM: MANUAL TRANSMISSION; Seating Capacity: 19-SEATER; Building Condition: COMPLETELY BUILT UNIT; Roof: HIGH-ROOF; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: STANDARD TYPE; Fuel Induction: DIESEL COMMON RAIL INJECTION SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (N04C) 4000CC DIESEL; Destination: GULF CORPORATION COUNCIL | 01.2018 - ... | View |
Steering Relay Rod (Center Link) for Toyota Coaster ?
This steering relay rod is the main link between the pitman arm and the left/right tie rods. It keeps both front wheels aligned and turning together. You need it to maintain straight tracking, quick steering response, and even tire wear. A healthy center link means safer handling on city roads and long trips.
How it works ⚙️
The bar spans across the chassis, supported by the idler arm and driven by the pitman arm. Ball-stud joints at each end pivot smoothly as you turn the wheel. Sealed boots hold grease and keep out dust and water. The hardened steel tube resists bending, while precision tapers lock joints tight for accurate steering geometry.
What happens if it fails ⚠️
Worn joints cause free play, wheel wander, and toe changes. You may hear clunks over bumps, feel vibration, or notice uneven tire wear. Braking stability can drop, and the vehicle may drift. In severe cases, joint separation can lead to sudden loss of steering control.
Why choose this replacement ✅
- OEM-grade steel and heat treatment
- Precision ball studs with anti-corrosion coating
- Sealed boots for long service life
- Direct-fit length and tapers for quick install
Tech tips ?️
Torque all nuts to spec and use new cotter pins. If grease fittings are present, fill with chassis grease. Always perform a wheel alignment after install. Inspect pitman arm, idler arm, and outer tie rods; replace if loose.
Compatibility
- Coaster
