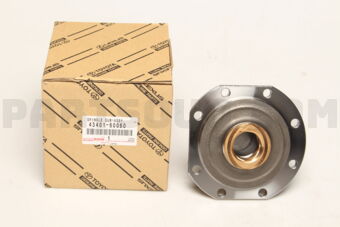

  • 4340160060 Toyota SPINDLE SUB-ASSY, STEERING KNUCKLE

4340160060 Toyota SPINDLE SUB-ASSY, STEERING KNUCKLE, Price: 246.65$, Weight: 2.365kg

    • Make Number Name Availability Weight, kg Ship in, Days Price

    Toyota

    4340160060

    SPINDLE SUB-ASSY, STEERING KNUCKLE

    		 2

    2.365

    2-3

    246.65$


    Originals

    Make Number Name Availability Weight, kg Processing, days Price
    Toyota
    4340160060
    SPINDLE SUB-ASSY, STEERING KNUCKLE
    		1
    2.72
     Dispatch 24h
    295.98$


    Substitutions

    Make Number Name Availability Weight, kg Processing, days Price
    Tezuka
    4340160012
    FLANGE ASSY FJ45/60/LN106
    		0
    3.013
    4-5
    45.39$
    		 Not Available

    Compatibility

    DescriptionModelOptionsProd PeriodDiagram
    KZN130,LN8#,10#,112,13#,VZN130,YN8#,10#,130YN105-PRMSSATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Deck,cab: DOUBLE CAB PICKUP; Body: DOUBLE CAB; Grade: SR TYPE; Fuel Induction: CARBURETOR SYSTEM(GASOLINE); Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (3Y) 2000CC09.1988 - 08.1991 View
    DescriptionModelOptionsProd PeriodDiagram
    LN,RN,YN,VZN10#,11#,13#,KZN,LN205YN106R-PRMRSATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Deck,cab: DOUBLE CAB; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: STANDARD TYPE; Fuel Induction: CARBURETOR SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (4Y) 2200CC; Destination: GENERAL COUNTRIES08.1988 - 08.1997 View
    DescriptionModelOptionsProd PeriodDiagram
    FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7#RJ77LV-MNATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: HARDTOP(HARDTOP OR FRP TOP); Grade: LX TYPE; Fuel Induction: CARBURETOR SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (22R) 2400CC; Destination: FOR GENERAL COUNTRIES(EXCEPT FOR GCC,ARL,SA)04.1990 - 04.1996 View
    DescriptionModelOptionsProd PeriodDiagram
    FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7#PZJ77V-MNUATM,MTM: MANUAL TRANSMISSION,5-SPEED FLOOR SHIFT; Body Shape: VEHICLE WITH A NUMBER STARTING FROM 4(MINITRUCK); Body: HARDTOP(VAN TYPE OR FPR TOP); Body: HARDTOP(VAN TYPE OR FRP TOP); Grade: LX TYPE,PRADO LX TYPE; Engine: (1PZ) 3500CC DIESEL08.1991 - 01.1994 View
    DescriptionModelOptionsProd PeriodDiagram
    FJ6#,HJ6#FJ62V-MRCATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Roof: STANDARD ROOF; Grade: STANDARD TYPE; Fuel Induction: CARBURETOR SYSTEM; Gear Shift Type: (3F) MTM,3-SPEED FLOOR SHIFT; Engine: (3F) 4000CC08.1987 - 01.1990 View

    Steering Knuckle with Spindle for Toyota 4x4

    This heavy-duty steering knuckle keeps your front wheel located, steered, and braked with factory accuracy. It links the hub/bearing, brake caliper, tie-rod end, and upper/lower ball joints into one rigid unit. Forged and precisely machined, it holds alignment under loads, resists impact, and keeps the ABS sensor and dust shield in the correct position.

    Why you need it

    It maintains camber and caster geometry, carries vertical and cornering forces, and provides a true seat for the wheel bearing. The result is straight tracking, even tire wear, solid braking, and tight steering feel on- and off-road.

    How it works

    Bolted to ball joints and tied to the rack via the tie-rod, the knuckle pivots to steer. The hub/bearing rides on the spindle stub, while caliper ears keep brake alignment square to the rotor. Machined tapers and threads lock components safely under torque.

    If it’s worn or bent ⚠️

    • Pulling, shimmy, or crooked steering wheel
    • Uneven tire wear, hot bearings, brake rub
    • ABS light or sensor damage
    • Cracks can lead to wheel wobble or loss of control

    Tech tips ✅

    • Inspect for cracks, oval bearing seats, and damaged tapers
    • Replace cotter pins, torque to spec, and align after install
    • Seat the bearing square; clean mating faces; verify ABS gap

    Compatibility

    • Hilux
    • Hilux/4Runner (4Wd)
    • Land Cruiser
    • Land Cruiser S/T,H/T
    • Land Cruiser Van
