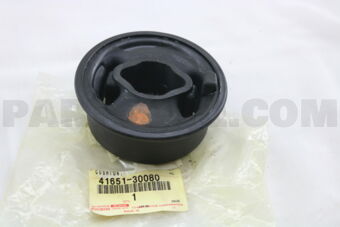

4165130080 Toyota CUSHION, REAR DIFFERENTIAL MOUNT, NO.2, Price: 87.77$, Weight: 0.61kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
4165130080 |
CUSHION, REAR DIFFERENTIAL MOUNT, NO.2 |
6 |
0.61 |
2-3 |
87.77$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
CUSHION, REAR DIFFERENTIAL MOUNT, NO.2
|
4 |
0.702
|
|
98.44$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| JZS16# | JZS161-BEPVZ | ATM,MTM: AUTOMATIC TRANSMISSION; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (2JZGTE) 3000CC 24-VALVE DOHC EFI TURBO | 08.1997 - 01.2005 | View |
Rear Differential Mount Cushion (No.2) – Quiet, Stable Driveline ?
This mount cushion sits at the rear differential support point and acts like a shock absorber between the drivetrain and the chassis. Its job is to hold the differential in the correct position while softening harsh vibration and drivetrain twist under acceleration, braking, and gear changes.
Why this part is needed ✅
The differential produces torque reaction that tries to rotate the housing. The cushion controls that movement so power transfers smoothly to the wheels and the car stays stable without extra noise.
How it works ⚙️
A rubber-insulated mount absorbs vibration and limits differential travel. It keeps the driveline angle correct, reducing stress on bushings, joints, and mounts.
What happens if it’s worn or broken ?
- Clunk or thud when shifting or taking off
- Vibration in the cabin, especially under load
- Driveline lash, unstable traction feel
- Accelerated wear of driveshaft joints and nearby mounts
Compatible Models
- Aristo
