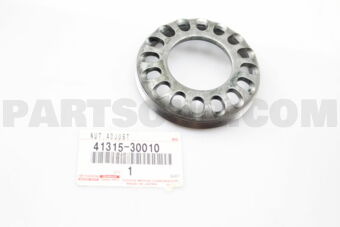

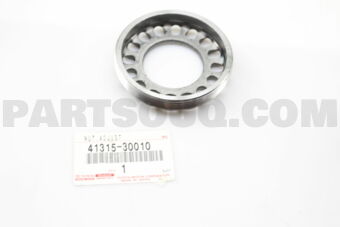

4131530010 Toyota NUT, FRONT AXLE DIFFERENTIAL BEARING ADJUST, Price: 8.40$, Weight: 0.148kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
4131530010 |
NUT, FRONT AXLE DIFFERENTIAL BEARING ADJUST |
22 |
0.148 |
2-3 |
8.40$ |
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
SLINGER, REAR DIFFERENTIAL DRIVE PINION OIL
|
0 |
0.032
|
-
|
3.58$
|
Not Available |
Front differential bearing adjuster nut for precise preload and backlash ⚙️
Why you need it ?️
This small but critical nut sets the carrier bearing preload and ring‑and‑pinion backlash in the front axle. Correct settings keep the gear mesh quiet, reduce heat, and protect bearings and teeth under load. If you’re rebuilding a diff, chasing gear whine, or replacing worn side bearings, a fresh adjuster nut ensures accurate setup and long service life.
How it works ?
The nut threads into the side adjuster and moves the differential case sideways in fine steps. Turning it increases or reduces preload on the tapered roller bearings and shifts ring gear position to achieve correct backlash. Once set with a dial indicator and inch‑pound wrench, it’s locked in place with the retainer. Hardened steel and precise threads hold settings under torque, vibration, and GL‑5 oil heat.
What happens if it’s damaged ❗
Stripped or distorted threads, cracked flats, or seized movement lead to drifting backlash, loud howl on drive/coast, clunk on take‑off, metal glitter in oil, overheating, and finally bearing or ring‑and‑pinion failure. You may feel front‑end vibration and see leaks from overheated seals.
Pro install notes ✅
Clean threads, lightly oil, set preload/backlash to spec, fit a new lock, and recheck after rotating the assembly. Refill with correct GL‑5 oil.
Compatibility
- Dyna
- Dyna/Toyoace
- Land Cruiser
- Land Cruiser 100
