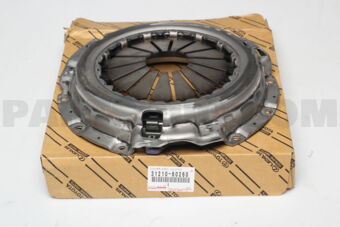

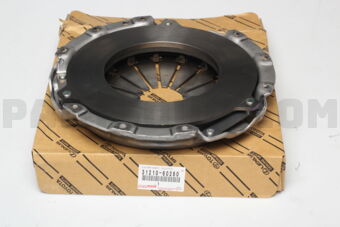

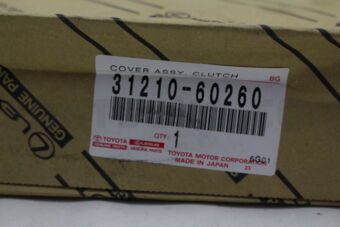

3121060260 Toyota COVER ASSY, CLUTCH, Price: 306.65$, Weight: 8.79kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
3121060260 |
COVER ASSY, CLUTCH |
48 |
8.79 |
2-3 |
306.65$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
COVER ASSY, CLUTCH
|
20 |
10.109
|
|
367.98$
|
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
3121060151
|
COVER ASSY, CLUTCH
|
0 |
10.35
|
-
|
219.02$
|
Not Available |
| Toyota |
3121036190
|
COVER ASSY, CLUTCH
|
0 |
10.776
|
-
|
217.65$
|
Not Available |
| Toyota |
3121036191
|
COVER ASSY, CLUTCH
|
0 |
10.161
|
-
|
217.65$
|
Not Available |
| Toyota |
3121060150
|
COVER ASSY, CLUTCH
|
0 |
14.778
|
-
|
217.65$
|
Not Available |
| Toyota |
BOOT, CLUTCH RELEASE FORK SUPPORT
|
0 |
0.007
|
-
|
2.01$
|
Not Available |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# | FZJ79R-TJMRK | ATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: PICKUP; Grade: STANDARD TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1FZFE) 4500CC EFI; Destination: GENERAL COUNTRIES | 01.2007 - 07.2009 | View |
Clutch Cover Assembly (Pressure Plate Cover) ⚙️
This clutch cover assembly is a key part of the manual transmission clutch system. It is needed to clamp the clutch disc tightly against the flywheel, so engine power can flow smoothly to the gearbox. Without correct clamping force, the vehicle cannot transfer torque properly and driving becomes unstable.
How it works ?
Inside the unit, a heavy spring (typically a diaphragm spring) pushes the pressure plate forward. When you release the clutch pedal, the spring force locks the disc between flywheel and pressure plate. When you press the pedal, the release bearing lifts the spring, the pressure plate backs off, and the disc is freed—allowing clean gear changes.
Symptoms if it’s worn or broken ?
A failing cover assembly can cause clutch slip under load, shudder on take-off, hard shifting, burning smell, or pedal feel changes. If the spring weakens or the fingers crack, the clutch may not disengage fully, leading to gear grinding and accelerated gearbox synchro wear. In severe cases, you may lose drive completely.
Why replace on time ✅
Fresh clamping force restores bite, reduces heat, protects the flywheel surface, and keeps engagement smooth—especially important for heavy-duty use and towing.
Compatibility
- Land Cruiser
