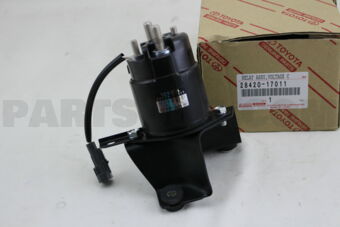

2842017011 Toyota RELAY ASSY, VOLTAGE CONVERTER, Price: 308.62$, Weight: 1.478kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
2842017011 |
RELAY ASSY, VOLTAGE CONVERTER |
38 |
1.478 |
2-3 |
308.62$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
RELAY ASSY, VOLTAGE CONVERTER
|
33 |
1.7
|
|
370.34$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ80,HDJ80,HZJ80,FZJ80 | HZJ80L-GNMNS | ATM,MTM: MANUAL TRANSMISSION; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: GENERAL COUNTRIES | 01.1990 - 01.1998 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ80,FZJ80,HDJ81,HZJ81 | HZJ81V-RNPNS | ATM,MTM: AUTOMATIC TRANSMISSION,4-SPEED FLOOR SHIFT; Grade: GX,GX LIMITED TYPE; Fuel Induction: DIESEL; Engine: (1HZ) 4200CC DIESEL | 01.1990 - 05.1993 | View |
Voltage Converter Relay Module for Toyota SUV ⚡️
Why this part is needed
This smart relay powers and protects the DC‑DC converter that feeds the 12V network. It delivers clean, stable voltage to ECU, lights, fuel pump, infotainment, and accessories. In tough off‑road or towing use, it prevents surges, cuts parasitic drain when the key is off, and ensures quick starts and reliable electronics .
How it works
When you switch IGN/ACC on, the coil energizes and closes high‑current contacts. That safely connects battery power to the converter, which then regulates output for the vehicle’s 12V bus. The relay uses a heavy copper contact set, suppression diode for coil kickback, and tight calibration to avoid chatter. It disengages when voltage drops too low, shielding modules and the battery .
What happens if it’s broken
Failure can cause hard starting or no crank, dim or flickering lights, radio resets, warning lamps, unstable idle, or intermittent stalling on bumps. You may see low‑voltage DTCs, blown fuses, hot relay housing, or a battery that won’t hold charge because the converter never comes online—or stays on and drains overnight.
Compatibility
- Land Cruiser
- Land Cruiser Van
