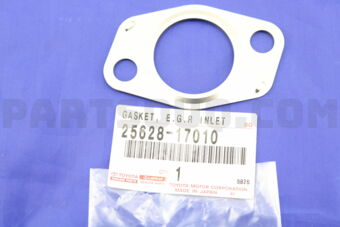

2562817010 Toyota GASKET, EGR INLET, Price: 8.14$, Weight: 0.017kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
2562817010 |
GASKET, EGR INLET |
237 |
0.017 |
2-3 |
8.14$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
GASKET, EGR INLET
|
231 |
0.02
|
|
9.77$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# | HZB56V-ZRPNS | ATM,MTM: AUTOMATIC TRANSMISSION; Seating Capacity: 9-SEATER; Building Condition: COMPLETELY BUILT UNIT; Roof: HIGH-ROOF; Rear Tire: DOUBLE TIRE; Grade: LX TYPE; Fuel Induction: DIESEL 2 VALVE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL | 01.1993 - 08.2004 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# | HZJ79R-TJMRSQ3 | ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: PICKUP; Grade: STANDARD TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: AUSTRALIA | 08.1999 - 01.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ100,UZJ100 | HDJ100R-GNPEZW | ATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: VX TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1HDFTE) 4200CC DIESEL TURBO | 01.1998 - 07.2003 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# | HZJ79-TJMRS3 | ATM,MTM: MANUAL TRANSMISSION,5-SPEED FLOOR SHIFT; Body Shape: VEHICLE WITH A NUMBER STARTING FROM 1(ORDINARY TRUCK); Body: CHASSIS FOR FIRE ENGINE; Grade: STANDARD TYPE; Engine: (1HZ) 4200CC DIESEL | 11.1999 - 08.2004 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ80,FZJ80,HDJ81,HZJ81 | HDJ81V-RNPGW | ATM,MTM: AUTOMATIC TRANSMISSION,4-SPEED FLOOR SHIFT; Grade: VX LIMITED TYPE; Fuel Induction: TURBO DIESEL 4 VALVE; Engine: (1HDFT) 4200CC DIESEL TURBO | 01.1995 - 01.1998 | View |
EGR Inlet Gasket for Toyota Engines ✅
This sealing gasket sits between the EGR inlet connection and the intake-side flange. Its main job is simple: keep exhaust gas routing airtight so the EGR system can work correctly. A tight seal helps stable idle, smoother acceleration, and cleaner combustion .
Why this gasket is needed
The EGR circuit carries hot exhaust gases back into the intake. Because of heat cycles and vibration, the joint must be sealed with a dedicated gasket. It prevents leaks that can confuse airflow readings and fuel trims.
How it works ⚙️
When the parts are bolted together, the gasket compresses and fills tiny surface imperfections. This creates a barrier against pressure pulses, heat, and soot. It also helps maintain correct EGR flow, which supports lower NOx emissions.
What happens if it’s broken
A damaged or reused gasket may cause exhaust/boost leaks, rough idle, hissing sounds, loss of power, higher fuel use, and a check engine light. Soot marks around the joint are a common clue. Replace during EGR or intake service for best results.
Workshop tip ️
Clean both mating faces, torque bolts evenly, and never stack old gaskets. A fresh seal saves comebacks.
