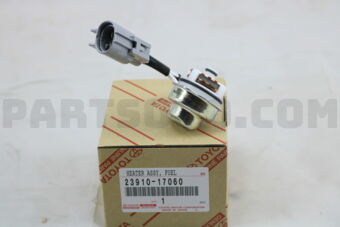

2391017060 Toyota HEATER ASSY, FUEL, Price: 82.94$, Weight: 0.118kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
2391017060 |
HEATER ASSY, FUEL |
1 |
0.118 |
2-3 |
82.94$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
HEATER ASSY, FUEL
|
1 |
0.136
|
|
99.53$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 | HZB70R-ZGMSS | ATM,MTM: MANUAL TRANSMISSION; Seating Capacity: 30-SEATER; Building Condition: COMPLETELY BUILT UNIT; Roof: HIGH-ROOF; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: STANDARD TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: GENERAL COUNTRIES | 01.2017 - ... | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| CE121,NZE12#,ZZE12# | CE121G-AWPNE | ATM,MTM: AUTOMATIC TRANSMISSION; Body: WAGON; Grade: X TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (3CE) 2200CC DIESEL EFI | 08.2000 - 04.2004 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ101,UZJ100 | HDJ101K-RNPGZ | ATM,MTM: AUTOMATIC TRANSMISSION; Grade: VXL TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1HDFTE) 4200CC DIESEL TURBO | 01.1998 - 08.2002 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ10#,HDJ100,HZJ105,UZJ100 | HZJ105R-GNMNS | ATM,MTM: MANUAL TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: DIESEL 2 VALVE; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: GENERAL COUNTRIES | 01.1998 - 08.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BU28#,LY228,270,RZU280,XZU28#,XKU280 | XKU280K-QLQDY | ATM,MTM: MANUAL TRANSMISSION; Grade: DELUXE TYPE; Fuel Induction: DIESEL COMMON RAIL INJECTION SYSTEM; Engine: (N04C) 4000CC DIESEL | 10.2006 - 09.2011 | View |
Fuel Pre-Heater Assembly for Reliable Cold Starts ❄️⛽
This unit warms diesel before it reaches the filter and high‑pressure pump. In cold weather, fuel can wax and thicken. That starves the system and makes starting hard. A quality pre-heater keeps fuel fluid, protects injectors, and stabilizes idle. It also reduces filter clogging and extends pump life.
How It Works
An electric heating element sits in the housing that the fuel passes through. A thermostat or ECU‑controlled relay energizes the element when the temperature drops. Heat transfers quickly to the moving fuel, so viscosity stays correct. Many setups place the unit before the filter to stop wax from blocking media. Current draw is low and duty cycles are short, so battery impact is minimal.
Why You Need It ✅
- Fast cold starts and smooth warm‑up
- Prevents waxing and filter ice-up
- Protects high‑pressure pump and injectors
- Stable power delivery and cleaner combustion
Failure Signs and Risks ⚠️
If the heater fails, expect long cranking, white smoke, rough idle, or stalling after start. Power may drop on climbs. Filters can plug with wax, causing low rail pressure (e.g., P0087). Pumps may run noisy and wear faster. Look for blown fuses, corroded terminals, or a cracked housing leaking fuel.
Fitment and Install Tips
Choose a direct‑fit unit with the correct connectors and seals. Lubricate O‑rings, torque evenly, prime the system, and check for leaks. Clear codes and road test.
Compatibility
- Coaster
- Corolla/Fielder
- Land Cruiser
- Land Cruiser 100
- Quick Deli/Urban Sup
