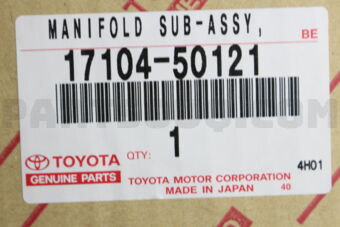

1710450121 Toyota MANIFOLD SUB-ASSY, EXHAUST, RH, Price: 341.37$, Weight: 3.72kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
1710450121 |
MANIFOLD SUB-ASSY, EXHAUST, RH |
1 |
3.72 |
2-3 |
341.37$ |
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
1710450120
|
MANIFOLD SUB-ASSY, EXHAUST, RH
|
0 |
4.602
|
-
|
353.47$
|
Not Available |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ101,UZJ100 | UZJ100W-GNAZK | ATM,MTM: AUTOMATIC TRANSMISSION; Grade: CYGNUS TYPE; Gear Shift Type: ATM, 5-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI | 08.2002 - 08.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ10#,HDJ100,HZJ105,UZJ100 | UZJ100L-GNPEKV | ATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: VX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (2UZFE) 4700CC 32-VALVE DOHC EFI; Destination: GULF CORPORATION COUNCIL | 01.1998 - 08.2002 | View |
Right‑Hand Exhaust Manifold Assembly for Toyota V8 SUVs
Keep your engine breathing right with this OE‑grade right‑side exhaust manifold. It collects hot gases from the cylinder head and channels them cleanly into the front pipe and catalytic converter. Designed to handle high heat and tough off‑road use, it restores quiet operation and proper backpressure in Toyota V8 trucks.
Why this part is needed
A healthy manifold seals each exhaust port, prevents leaks, and maintains the tuned flow your ECU expects. That means stable fuel trims, strong low‑end torque, and lower emissions. It also protects nearby components from heat and fumes.
How it works
Bolted to the right cylinder head, the cast runners merge into a single outlet. The flange mates to the downpipe with a gasket and spring bolts. Heat expansion is managed by robust casting and machined faces, ensuring a tight seal under load.
What happens if it’s broken ⚠️
- Ticking noise on cold start, louder under acceleration
- Exhaust smell, potential fumes near cabin
- Loss of torque, poor fuel economy, CEL from skewed O2 readings
- Warped studs, burnt gasket, heat damage to wiring and shields
Pro tips
- Always replace gasket, studs, and nuts; pre‑soak fasteners with penetrant
- Check manifold flatness; clean head ports before install
- Torque in stages from center out; recheck after heat cycles
Compatibility
- Land Cruiser
- Land Cruiser 100
