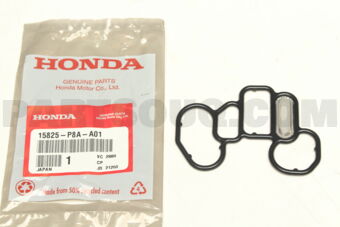

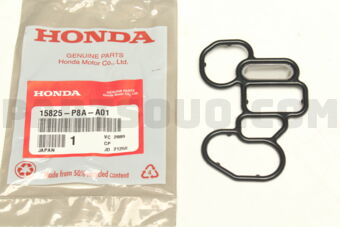

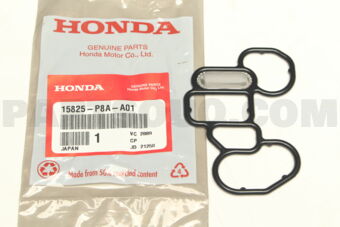

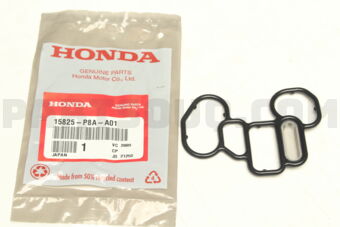

  • 15825P8AA01 Honda FILTER ASSY,SPOOL

15825P8AA01 Honda FILTER ASSY,SPOOL, Price: 17.02$, Weight: 0.01kg

    • Make Number Name Availability Weight, kg Ship in, Days Price

    Honda

    15825P8AA01

    FILTER ASSY,SPOOL

    		 42

    0.01

    2-3

    17.02$


    Compatibility

    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KD,KU,KW42.0 VTI,2.0 VTIE,2.0 VTIL,3.0 SIR,EX,EX-L,VTI,VTIE,VTIL2003-200618SDA01General5AT,5MT View
    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KB,KE,KG,KY22.0IES,2.0ILS,3.0IV6,VTI1998-200217S8201Europe4AT,5MT View
    BodyDoorEngineNPlRegionGearboxDiagram
    GH-TA1,GH-TA2,GH-TA3,GH-TA4,LA-TA1,LA-TA2,LA-TA3,LA-TA45F23A,J30A11S2X01JapanAT View
    BodyDoorEngineNPlRegionGearboxDiagram
    DBA-RR1,DBA-RR2,DBA-RR5,DBA-RR65J35A,K24A11SYKD01JapanAT View
    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KH,KN,KU43.2TL,3.2TL TYPE-S,INSPIRE1999-200318S0K01General4AT,5AT View
    BodyDoorEngineNPlRegionGearboxDiagram
    GH-RL1,LA-RL15J35A11S0X01JapanAT View
    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KD,KF,KH,KQ,KU4LEGEND,LEGEND MALAYSIA,RL,RL BEIJING,RL HONGKONG2007-201218SJA701General5AT,6AT View
    BodyDoorEngineNPlRegionGearboxDiagram
    DBA-KB1,DBA-KB24J35A,J37A11SJA501JapanAT View
    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KQ5TOURING2003-200618S3V01General5AT View
    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KY5EX,EXL,LX2003-200817S9V01Europe5AT View
    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KQ,KT,KU5EX,EXI,EXL,EXV2000-200318S3N01General4AT,5AT View
    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KX5EXL200718S9V701General5AT View
    Destination RegionDoorVehicle GradeManufacturedNPlRegionGearboxDiagram
    KK4RT,RTL2009-201415SJC901General5AT View
    BodyDoorEngineNPlRegionGearboxDiagram
    GF-UA4,GF-UA5,LA-UA4,LA-UA54J25A,J32A11S0K01JapanAT View

    VTEC Spool Valve Filter Screen & Gasket Assembly

    This precision filter-and-seal unit protects the oil control for Honda/Acura VTEC/VCM systems. It traps fine debris before oil reaches the spool valve and pressure switch, and it seals the passages so the engine keeps smooth power, clean switching, and quiet top-end operation. Perfect for restoring consistency after high miles or erratic maintenance.

    Why you need it

    VTEC relies on clean, stable oil pressure. Sludge or a tired gasket upsets hydraulic control, causing hesitation and leaks. This assembly keeps the passages clean and sealed, improving drivability and fuel economy. ⚙️

    How it works

    A stainless micro‑mesh screen filters pressurized oil feeding the spool valve, stabilizing flow to the rocker pistons/solenoid. The formed plate and rubber gasket prevent cross‑leaks. It mounts on the cylinder head near the VTEC solenoid; install with fresh oil and a new O‑ring for best results.

    What happens if it’s bad

    Clogged screen or flattened seal = late/no VTEC, surge at 3–5k rpm, reduced power, poor MPG, ticking, and oil seep around the housing. The ECM may flag P1259 and turn on the Check Engine light. Prolonged neglect can score the spool valve and wear cam followers. ❗

    Tech tips

    Inspect at oil changes; replace if the mesh is dark/torn or the housing leaks. Clean mating faces, torque to spec (no sealant in oil ports), and use the correct viscosity. 20–40 minutes with basic tools. Result: stable idle, crisp mid‑range, and dry fittings. ✅

    Compatibility

    • Odyssey
    • Accord Coupe
    • Accord
    • Mr-V
    • Legend
    • Pilot
    • Ridgeline
    • Saber
    • Lagreat
    • Avancier
    • Mdx
    • Legend 4D
    • Elysion Prestig
    • Inspire
