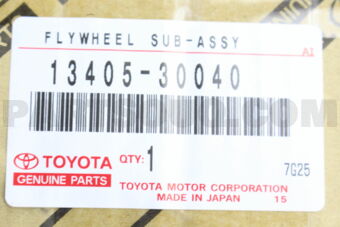

1340530040 Toyota FLYWHEEL SUB-ASSY, Price: 395.54$, Weight: 19.7kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
1340530040 |
FLYWHEEL SUB-ASSY |
3 |
19.7 |
2-3 |
395.54$ |
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
CAMSHAFT
|
0 |
3.163
|
-
|
265.24$
|
Not Available |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GDJ15#,GRJ150,KDJ150,TRJ150 | KDJ150L-GKFEYW | ATM,MTM: MANUAL TRANSMISSION; NO. Of Doors: 5-DOOR; Driver's Position: LEFT-HAND DRIVE VEHICLES; Gear Shift Type: MTM, 6-SPEED FLOOR SHIFT; Engine: (1KDFTV) 3000CC DIESEL TURBO; Destination: EUROPE | 08.2017 - 07.2020 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GRJ12#,KDJ120,KZJ120,LJ12#,RZJ12#,TRJ12# | KDJ120R-GKFEYQ | ATM,MTM: MANUAL TRANSMISSION; NO. Of Doors: 5-DOOR; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: GX TYPE; Gear Shift Type: MTM, 6-SPEED FLOOR SHIFT; Engine: (1KDFTV) 3000CC DIESEL TURBO; Destination: AUSTRALIA | 08.2006 - 08.2009 | View |
Engine Flywheel Assembly for Toyota — smooth power, clean starts ⚙️
This heavy, precisely balanced disc stores engine energy and delivers it evenly to the gearbox. It gives the starter a solid ring gear to bite, provides a flat friction face for the clutch, and calms crankshaft vibration. The result is easier launches, quieter idle, and longer drivetrain life .
Why this part is needed
It stabilizes crank pulses, lets the starter crank the motor, and ensures the clutch grips without chatter. On tough off-road or towing duty, a healthy flywheel keeps shifts smooth and protects splines and bearings.
How it works
Bolted to the crankshaft, the steel mass stores rotational energy. The outer ring gear meshes with the starter pinion, while the machined face mates with the clutch disc and pressure plate. Proper weight and balance reduce torsional spikes and drivetrain shock.
What happens if it’s bad ❗
Symptoms include hard starting (chewed ring teeth), shudder on take‑off, clutch slip, burnt smell, rattles on idle, and vibrations under load. Severe heat spots or cracks can cause rapid clutch wear and even gearbox damage.
Tech notes
Always inspect for runout, cracks, and hot spots; resurface or replace as needed. Use new bolts, torque in sequence, clean mating faces, and check the rear main seal and pilot bearing for a leak-free, lasting repair ✅.
Compatibility
- Land Cruiser
- Land Cruiser Prado
