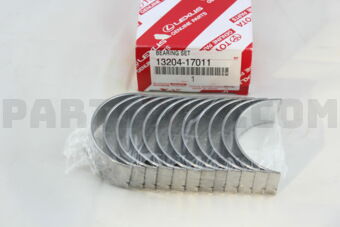

1320417011 Toyota BEARING SET, CONNECTING ROD, Price: 76.29$, Weight: 0.435kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
1320417011 |
BEARING SET, CONNECTING ROD |
14 |
0.435 |
2-3 |
76.29$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
BEARING SET, CONNECTING ROD
|
4 |
0.5
|
|
91.55$
|
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BB60,BZB60,70,GDB##,HZB60,70,TRB60,70,XZB60,70,80 | HZB70R-ZGMSS | ATM,MTM: MANUAL TRANSMISSION; Seating Capacity: 30-SEATER; Building Condition: COMPLETELY BUILT UNIT; Roof: HIGH-ROOF; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: STANDARD TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: GENERAL COUNTRIES | 01.2017 - ... | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# | HZJ79R-TJMRS | ATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: PICKUP; Grade: STANDARD TYPE; Fuel Induction: DIESEL; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HZ) 4200CC DIESEL; Destination: GENERAL COUNTRIES | 01.2007 - ... | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ100,UZJ100 | HDJ100R-GNPEZW | ATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: VX TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1HDFTE) 4200CC DIESEL TURBO | 01.1998 - 07.2003 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ75,LJ7#,HZJ7#,PZJ7#,KZJ7# | HZJ79-TJMRS3 | ATM,MTM: MANUAL TRANSMISSION,5-SPEED FLOOR SHIFT; Body Shape: VEHICLE WITH A NUMBER STARTING FROM 1(ORDINARY TRUCK); Body: CHASSIS FOR FIRE ENGINE; Grade: STANDARD TYPE; Engine: (1HZ) 4200CC DIESEL | 11.1999 - 08.2004 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ80,FZJ80,HDJ81,HZJ81 | HZJ81V-RNPGS | ATM,MTM: AUTOMATIC TRANSMISSION,4-SPEED FLOOR SHIFT; Grade: VX LIMITED TYPE; Fuel Induction: DIESEL; Engine: (1HZ) 4200CC DIESEL | 05.1993 - 08.1996 | View |
OE‑spec Connecting Rod Bearing Set for Reliable Engine Rebuilds
Why this part is needed
These precision shells keep the connecting rod big‑end gliding on a thin oil film, protecting the crankshaft journal under heavy load. Fresh bearings restore factory clearance, stabilize oil pressure, reduce friction, and silence rod knock. Install during overhaul, after crank polish/grind, or when you see glitter in oil, low oil pressure, or tapping on cold start. ✅
How it works ️
Two half‑shells with a steel back and tri‑metal overlay seat into the rod and cap with a designed “crush” fit. With proper clearance, the oil groove builds a hydrodynamic wedge that centers the rod on the crank, carrying load without metal‑to‑metal contact. Correct grade/oversize matches the crank journal size.
What happens if it’s worn or broken ⚠️
Excess clearance drops oil pressure, raises heat, and scrubs the overlay. You’ll get rod knock under load, copper showing, metal debris, a spun shell, scored journals, or a seized and thrown rod—often terminal engine damage.
Tech tips
- Measure clearance with plastigage; choose proper grade or oversize.
- Inspect journals for taper/out‑of‑round; polish or grind if needed.
- Clean bores, align tangs, and use assembly lube on install.
- Torque rod bolts to spec; verify oiling holes and bearing crush.
Compatibility
- Coaster
- Land Cruiser
- Land Cruiser 100
- Land Cruiser S/T,H/T
- Land Cruiser Van
