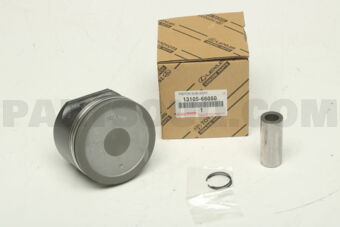

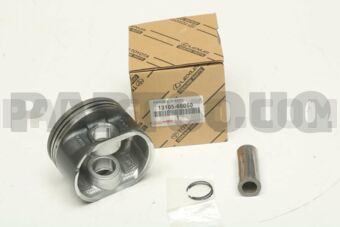

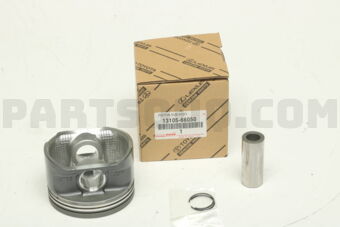

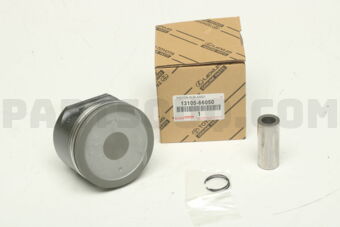

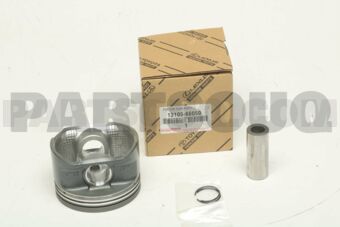

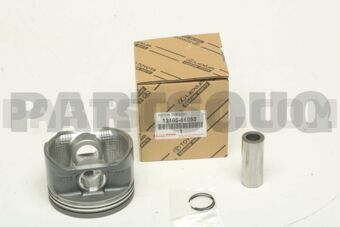

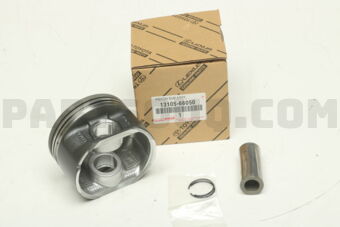

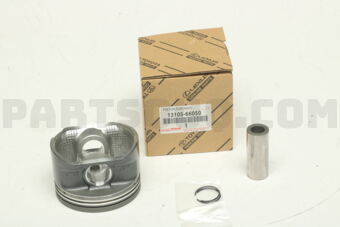

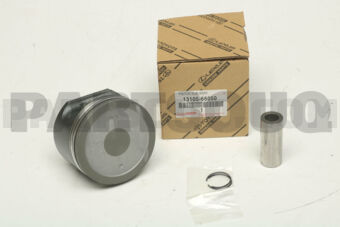

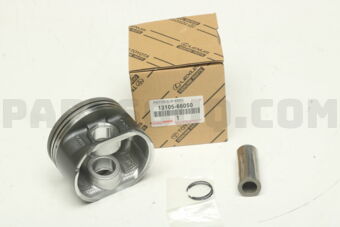

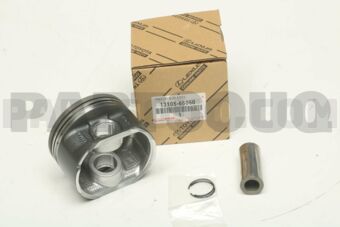

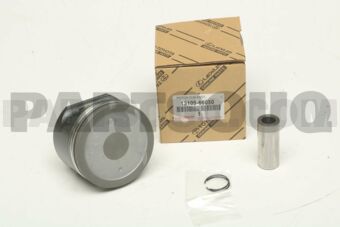

1310566050 Toyota PISTON SUB-ASSY, W/PIN, Price: 62.01$, Weight: 0.765kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
1310566050 |
PISTON SUB-ASSY, W/PIN |
184 |
0.765 |
4 |
62.01$ |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| GDJ7#,GDJL7#,FZJ7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# | FZJ76L-RKMRK | ATM,MTM: MANUAL TRANSMISSION; Building Condition: COMPLETELY BUILT UNIT; Driver's Position: LEFT-HAND DRIVE VEHICLES; Body: HARDTOP; Grade: STANDARD TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1FZFE) 4500CC EFI; Destination: GENERAL COUNTRIES | 01.2007 - 07.2009 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ10#,HDJ100,HZJ105,UZJ100 | FZJ100L-GNPNKC | ATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: LEFT-HAND DRIVE VEHICLES; Grade: GX TYPE; Fuel Induction: ELECTRIC FUEL INJECTION SYSTEM; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1FZFE) 4500CC EFI; Destination: CHINA | 09.2003 - 06.2006 | View |
Understanding the Piston Sub-Assembly with Pin
Pistons are the heart of an engine, playing a pivotal role in the internal combustion process. This essential component drives the crankshaft, converting the energy produced by burning fuel into mechanical work. Without a fully functional piston, your engine's performance and efficiency would suffer dramatically.
Why is the Piston Necessary?
In an engine, the pistons move up and down in the cylinders. They are crucial for compressing the air-fuel mixture and harnessing the explosion force. The pin affixed to the piston acts as a connection between the piston and the connecting rod, facilitating smooth articulation.
How Does It Work?
The piston sub-assembly engages in a repetitive cycle, where it travels upward for compression and downward for power delivery. This motion occurs tens of thousands of times per minute. The attached pin ensures the piston remains correctly aligned, minimizing friction and wear.
Consequences of a Broken Piston
When a piston or its pin fails, the engine may suffer from reduced power and efficiency, increased oil consumption, and even catastrophic engine damage if not addressed. Identifying signs of wear early and replacing faulty pistons can prevent severe issues.
Compatible Models
- Land Cruiser
- Land Cruiser 100
