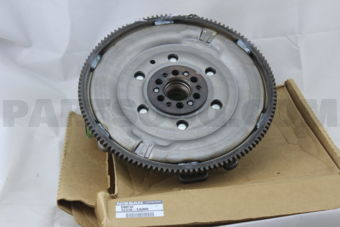

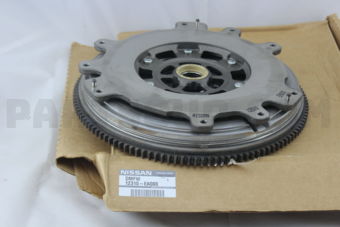

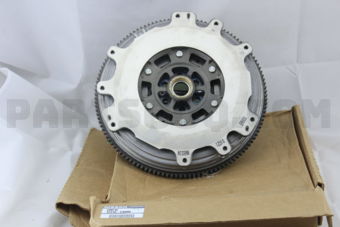

12310EA000 FLYWHEEL ASSY
Images
4 Images
Compatibility
Nissan 12310EA000
| Body Style | Engine | Frame | Vehicle Grade | Market | Model | Model Year From | Diagram |
|---|---|---|---|---|---|---|---|
| TRACK | QR20DE | SQ2F24 | BASE | Japan | F24 | 10.2011 | View |
| Body Style | Engine | Frame | Vehicle Grade | Market | Model | Model Year From | Diagram |
|---|---|---|---|---|---|---|---|
| LONG BODY | QR20DE | VRE25 | DX | Japan | E25 | 09.2007 | View |
| Body Style | Engine | Vehicle Grade | Market | Model | Model Year From | Model Year To | Diagram |
|---|---|---|---|---|---|---|---|
| KING CAB | QR25DE | S | Canada | D40 | 08.2010 | 08.2011 | View |
| Market | Model | Model Year From | Diagram |
|---|---|---|---|
| General/Asia (LHD) | D23F | 04.2017 | View |
| Body Style | Engine | Vehicle Grade | Market | Model | Model Year From | Options | Diagram |
|---|---|---|---|---|---|---|---|
| DOUBLE CAB | QR25DE | HIGH A GRADE | General/Asia (LHD) | D23M | 12.2017 | WHEEL DRIVE:4WD; INTAKE:SINGLE POINT INJECTION; AREA:MIDDLE AND NEAR EAST | View |
| Body Style | Engine | Market | Model | Model Year From | Options | Gearbox | Diagram |
|---|---|---|---|---|---|---|---|
| DOUBLE CAB | QR25DE | General/Asia (LHD) | D23X | 11.2014 | WHEEL DRIVE:2WD; AREA:MEXICO; BED:SMOOTH BED WIDE | MT | View |
| Market | Model | Model Year From | Diagram |
|---|---|---|---|
| General/Asia (RHD) | D23TT | 10.2017 | View |
| Body Style | Engine | Frame | Vehicle Grade | Market | Model | Model Year From | Diagram |
|---|---|---|---|---|---|---|---|
| VAN | QR20DE | VR2E26 | DX | Japan | E26 | 06.2012 | View |
| Body Style | Engine | Market | Model | Model Year From | Options | Diagram |
|---|---|---|---|---|---|---|
| VAN | QR25DE | General/Asia (LHD) | E26 | 06.2012 | AREA:GENERAL AREA; B LENGTH:LONG BODY; ROOF/DOOR:STANDARD ROOF/4 DOOR; CAPACITY:3 PERSONS | View |
| Market | Model | Model Year From | Diagram |
|---|---|---|---|
| General/Asia (LHD) | JD23TT | 08.2018 | View |
| Body Style | Engine | Vehicle Grade | Market | Model | Model Year From | Model Year To | Diagram |
|---|---|---|---|---|---|---|---|
| MICRO BUS | QR25DE | TV | General/Asia (RHD) | E25 | 08.2007 | 11.2012 | View |
Information
Engine Flywheel Assembly ⚙️
This heavy-duty flywheel is a key drivetrain part that links the engine crankshaft to the clutch and gearbox. It is needed to store rotational energy, smooth engine pulses, and help the vehicle pull away cleanly from a stop without stalling. In daily driving, it also reduces vibration and supports stable idle.
How It Works
Bolted to the crankshaft, the flywheel spins with the engine. Its mass acts like a “rotating battery,” keeping momentum between combustion strokes. The clutch disc clamps against its friction surface to transfer power into the transmission. On many setups, the starter motor also engages the ring gear on the flywheel to crank the engine.
If It’s Worn or Broken
A damaged flywheel can cause clutch shudder, slipping, gear-changes that feel harsh, and rattling at idle. Bad heat spots or cracks may lead to burning smell, vibrations under load, and faster clutch wear. Severe failure can prevent starting or damage the clutch and starter components.
Compatible Models ✅
- Nv350 Urvan
- Frontier
- Atlas
- Np300 Frontier
- Navara
- Urvan
- Navara Np300
- Nv350 Caravan
- Caravan
- Terra
- Np300 Navara
