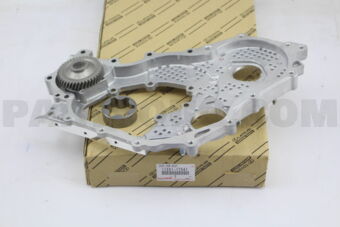

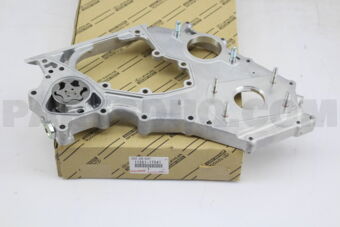

1130117041 Toyota CASE SUB-ASSY, TIMING GEAR, Price: 581.95$, Weight: 3.826kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
1130117041 |
CASE SUB-ASSY, TIMING GEAR |
6 |
3.826 |
2-3 |
581.95$ |
Originals
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| YSK |
TIMING COVER ASSY TOYOTA 1HDFTE LAND CRUISER COASTER
|
0 |
4.4
|
4-5
|
179.63$
|
Not Available |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| BB4#,5#,BZB40,50,HDB5#,HZB4#,5#,XZB4#,5# | HDB51-ZRPQZ5 | ATM,MTM: AUTOMATIC TRANSMISSION; Seating Capacity: 24-SEATER; Building Condition: TECS SPECIAL PURPOSE VEHICLE; Roof: HIGH-ROOF; Rear Tire: DOUBLE TIRE; Grade: EX TYPE; Fuel Induction: TURBO DIESEL EFI; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1HDFTE) 4200CC DIESEL TURBO | 08.2001 - 08.2004 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FJ,FZJ,HDJ,HJ,HZJ,KZJ,LJ,PZJ,RJ7# | HDJ79R-TJMRZQ3 | ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: PICKUP; Grade: STANDARD TYPE; Fuel Induction: TURBO DIESEL EFI; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1HDFTE) 4200CC DIESEL TURBO; Destination: AUSTRALIA | 08.2001 - 01.2007 | View |
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| HDJ100,UZJ100 | HDJ100R-GNPEZW | ATM,MTM: AUTOMATIC TRANSMISSION; Driver's Position: RIGHT-HAND DRIVE VEHICLES; Grade: VX TYPE; Gear Shift Type: ATM, 4-SPEED FLOOR SHIFT; Engine: (1HDFTE) 4200CC DIESEL TURBO | 01.1998 - 07.2003 | View |
Timing Gear Case Housing — OE Front Engine Cover
Why this part is needed
This housing seals and supports the gear-driven timing set at the front of the engine. It keeps oil inside, aligns the cam, idler, and crank gears, and carries the front crankshaft seal. A solid, true cover prevents gear misalignment, oil leaks, and noisy operation.
How it works
The cover forms a rigid wall that holds timing gear centers in exact position. Internal oil passages feed the gear train while the gasket and crank seal maintain pressure. By blocking dust and moisture, the front cover protects precision surfaces and keeps the timing stable ⏱️.
What happens if it’s broken ⚠️
Cracks or warped faces cause oil leaks near the crank pulley, whining or grinding from the front, timing drift, hard starting, and metallic debris in the oil. Continued use can chew gear teeth, overheat bearings, and lead to severe engine damage.
Tech notes ️
OE-spec die-cast alloy with machined gasket lands. Always install a new gasket and front seal, clean dowel seats, apply sealant at case joints, and torque bolts in sequence for a flat, leak-free fit.
Compatibility
- Coaster
- Land Cruiser
- Land Cruiser 100
