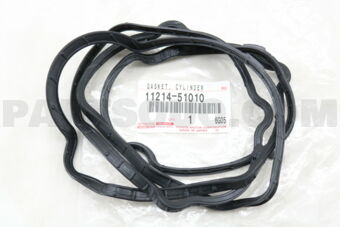

1121451010 Toyota GASKET, CYLINDER HEAD COVER, NO.2, Price: 10.29$, Weight: 0.043kg
| Make | Number | Name | Availability | Weight, kg | Ship in, Days | Price |
|---|---|---|---|---|---|---|
Toyota |
1121451010 |
GASKET, CYLINDER HEAD COVER, NO.2 |
348 |
0.043 |
2-3 |
10.29$ |
Originals
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
GASKET, CYLINDER HEAD COVER, NO.2
|
309 |
0.049
|
|
12.35$
|
Substitutions
| Make | Number | Name | Availability | Weight, kg | Processing, days | Price | |
|---|---|---|---|---|---|---|---|
| Toyota |
6231228100E0
|
WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
|
0 |
1.302
|
-
|
134.23$
|
Not Available |
Compatibility
| Description | Model | Options | Prod Period | Diagram |
|---|---|---|---|---|
| FZJ7#,GDJ7#,GDJL7#,GRJ7#,HZJ7#,VDJ7#,VDJL7# | VDJL79R-TJMRYQ3 | ATM,MTM: MANUAL TRANSMISSION; Building Condition: INCOMPLETE VEHICLES (CHASSIS & CAB); Driver's Position: RIGHT-HAND DRIVE VEHICLES; Body: PICKUP; Grade: STANDARD TYPE; Fuel Induction: TURBO DIESEL EFI; Gear Shift Type: MTM, 5-SPEED FLOOR SHIFT; Engine: (1VDFTV) 4500CC DIESEL TURBO; Destination: AUSTRALIA | 09.2022 - ... | View |
Valve/Cam Cover Perimeter Seal for Toyota Engines ️
Why you need it
This precision seal closes the joint between the cam (valve) cover and the cylinder head. It keeps engine oil inside, dust and moisture outside, and supports stable crankcase ventilation. A healthy gasket prevents oil drips on the exhaust, protects ignition components, and keeps your Toyota powerplant clean and efficient.
How it works ⚙️
Made from heat‑resistant elastomer, the profile sits in the cover groove and compresses evenly when the bolts are torqued to spec. This creates a uniform, flexible barrier around the head perimeter and spark plug wells. It withstands thermal cycling, vibration, and blow-by vapors, maintaining a tight seal without hardening or shrinking when installed on clean, dry surfaces. Small RTV dabs at corners/half-moons (where applicable) complete the seal.
What happens if it fails ❗
Expect wet edges, oil odor, or smoke from oil on the manifold. Oil may seep into plug tubes, causing misfires, coil damage, and a check engine light. Long-term leaks lower oil level, risk timing component wear, and can contaminate the catalytic converter. Over-tightening to “stop” a leak warps the cover—proper replacement is the fix.
Tech notes
Clean both mating surfaces, replace grommets if cracked, and tighten in sequence to the factory torque. Recheck after a heat cycle.
Compatibility
- Land Cruiser
